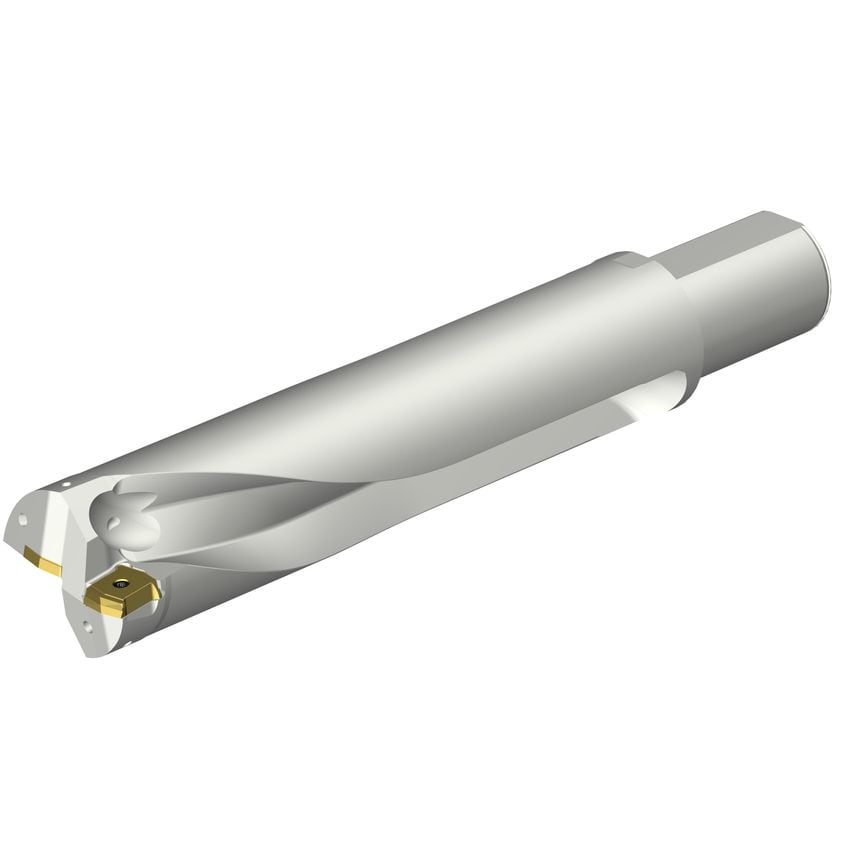

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation

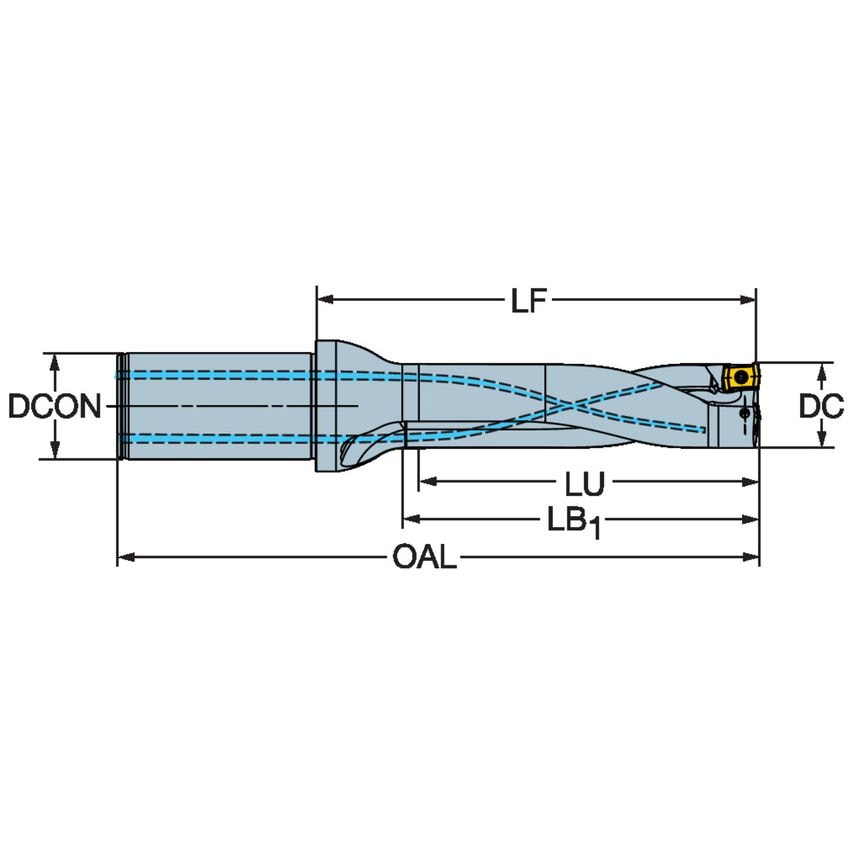

| Unit Measured | Metric |
| Tool Cutting Edge Angle | 81\u00b0 |
| MFR Part No. | 7549042 |
| Cutting Diameter | 65mm |
| CoroPak | 20.2 |
| Usable Length Diameter Ratio | 4.024447692308 |
| Connection Diameter | 50mm |
| Usable Length | 261.5891mm |
| Maximum Adjustment Limit | 0.73mm |
| Weight | 5.17kg |
| Through Hole Function Property | Yes |
| Functional Length | 299.4109mm |
| Rotational Speed Maximum | 5000 1/min |
| Overall Length | 381mm |
