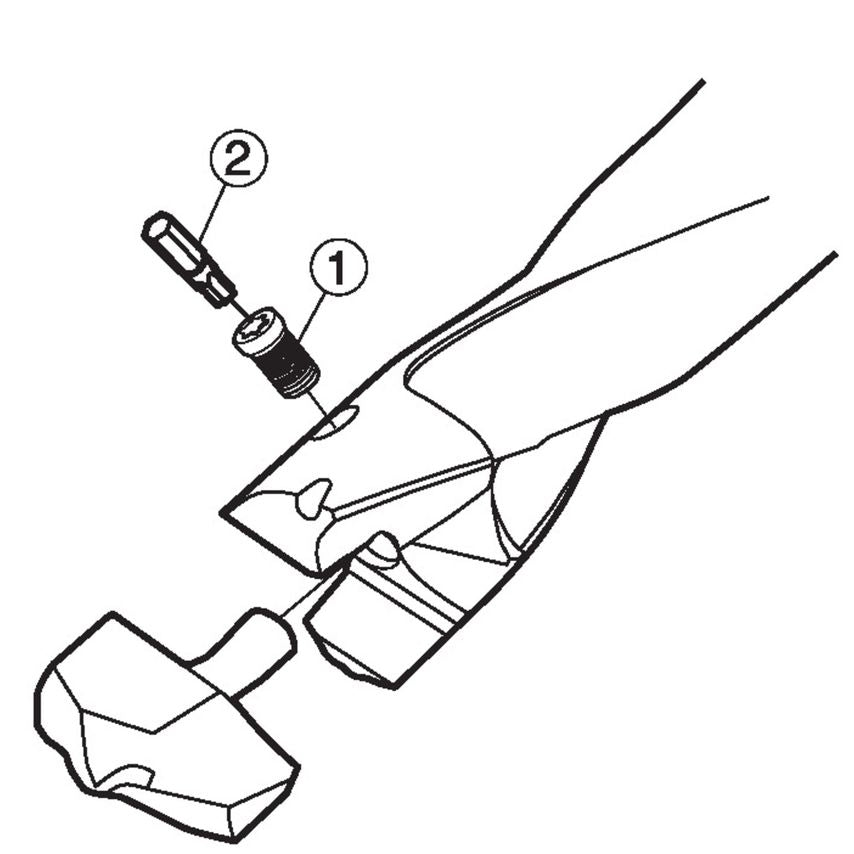

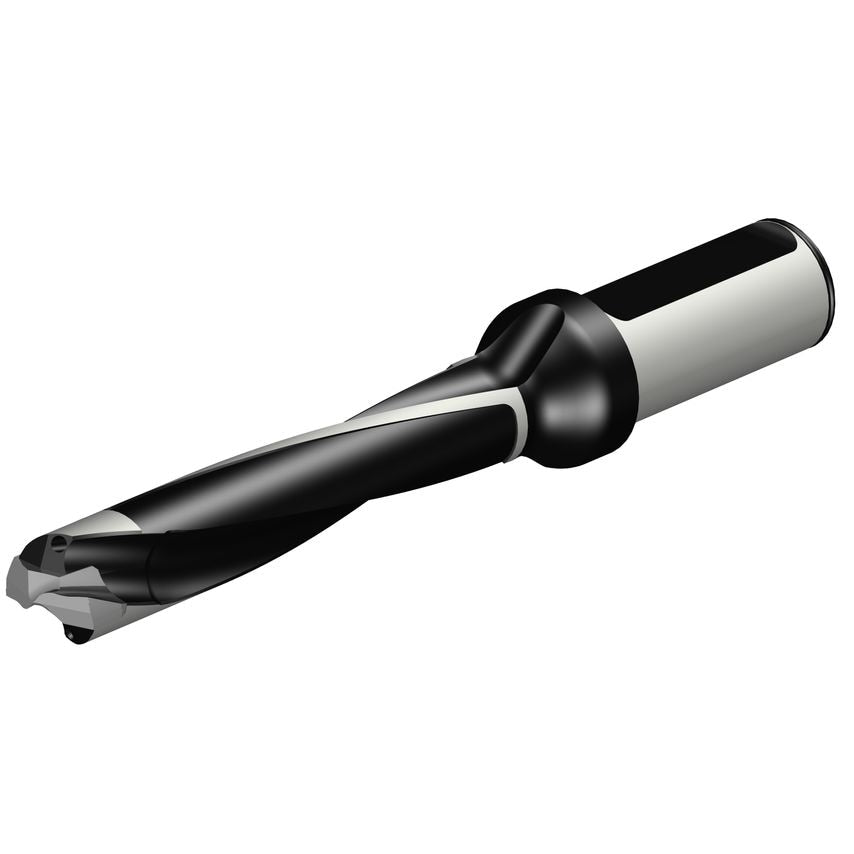

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation

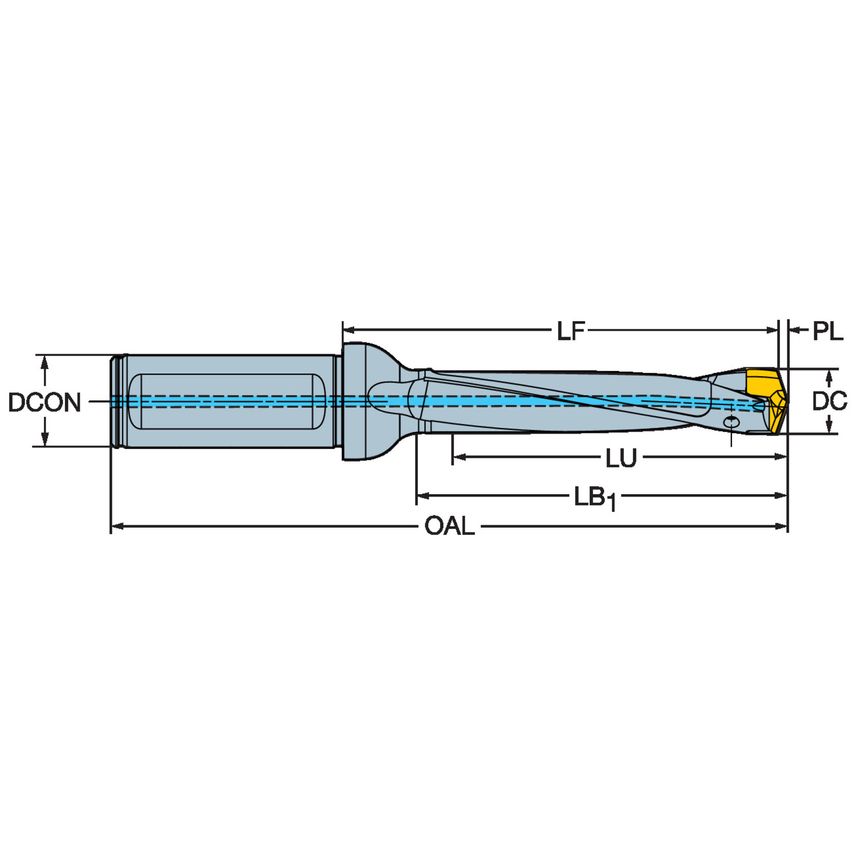

| Overall Length | 193mm |
| Functional Length | 15.88mm |
| Usable Length | 113.28mm |
| Through Hole Function Property | Yes |
| Cutting Diameter | 23.6mm |
| Rotational Speed Maximum | 12000 1/min |
| Achievable Hole Tolerance | H9 |
| Coolant Entry Style | 1 |
| Usable Length Diameter Ratio | 5.172602739726 |
| Weight | 0.44kg |
| Maximum Cutting Diameter | 21.99mm |
| CoroPak | 1 |
| MFR Part No. | 6239445 |
| Unit Measured | Imperial |
| Minimum Cutting Diameter | 21mm |
| Connection Diameter | 16mm |
