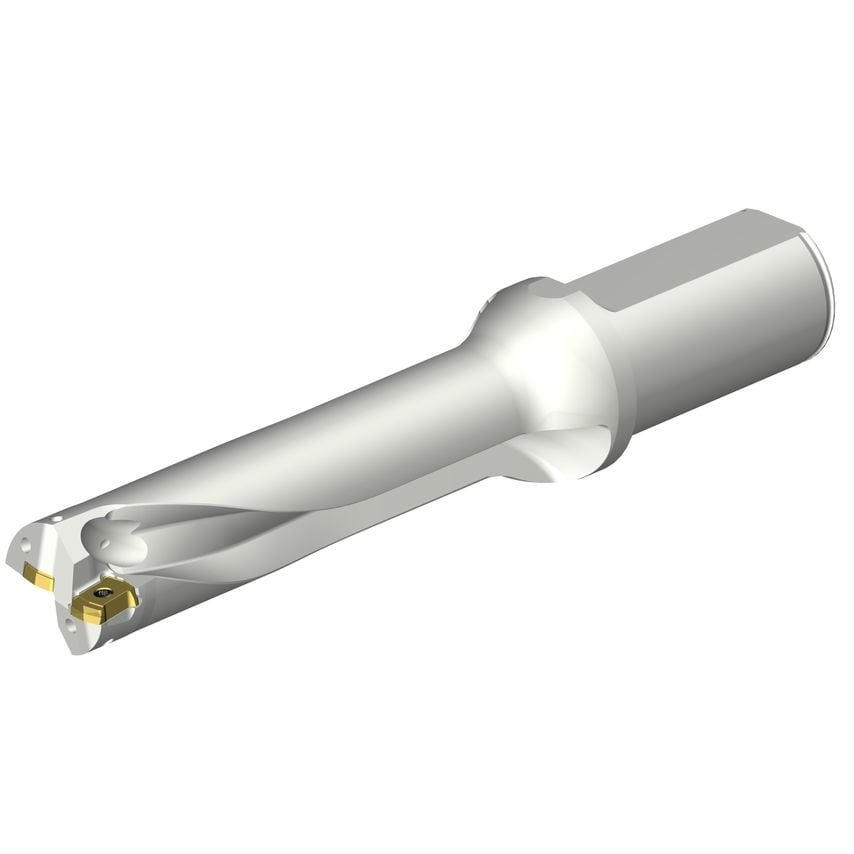

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation

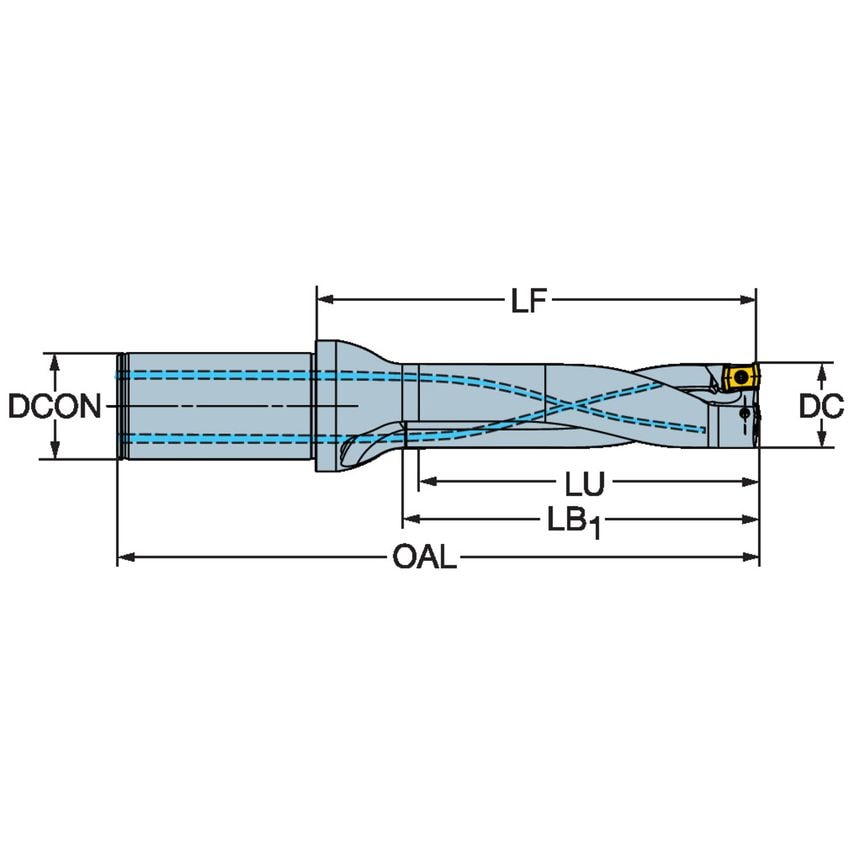

| Unit Measured | Metric |
| Cutting Diameter | 27mm |
| Usable Length | 108.665mm |
| Rotational Speed Maximum | 13000 1/min |
| Weight | 0.74kg |
| Connection Diameter | 32mm |
| Through Hole Function Property | Yes |
| Functional Length | 136.335mm |
| Maximum Adjustment Limit | 0.5mm |
| MFR Part No. | 7548872 |
| CoroPak | 19.2 |
| Tool Cutting Edge Angle | 81\u00b0 |
| Usable Length Diameter Ratio | 4.02462962963 |
| Overall Length | 197mm |
