Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation

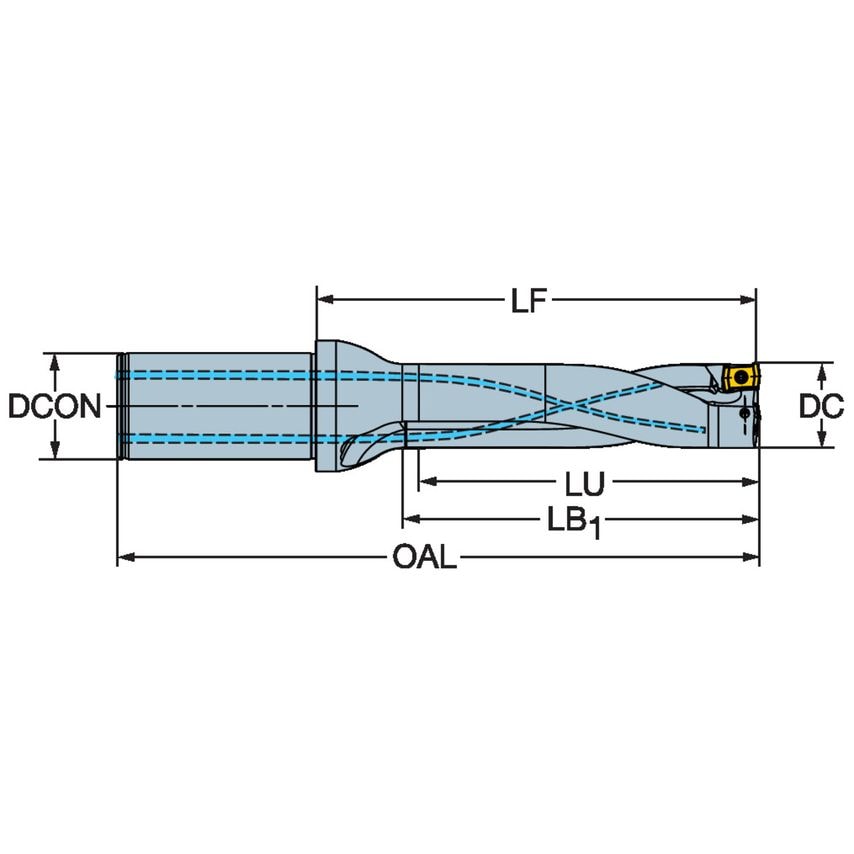

| Functional Length | 212.9982mm |
| Usable Length | 181.0018mm |
| CoroPak | 19.2 |
| Weight | 1.6kg |
| MFR Part No. | 7548929 |
| Connection Diameter | 40mm |
| Overall Length | 284mm |
| Maximum Adjustment Limit | 1.68mm |
| Cutting Diameter | 36mm |
| Rotational Speed Maximum | 6000 1/min |
| Through Hole Function Property | Yes |
| Usable Length Diameter Ratio | 5.027827777778 |
| Unit Measured | Metric |
| Tool Cutting Edge Angle | 81\u00b0 |
