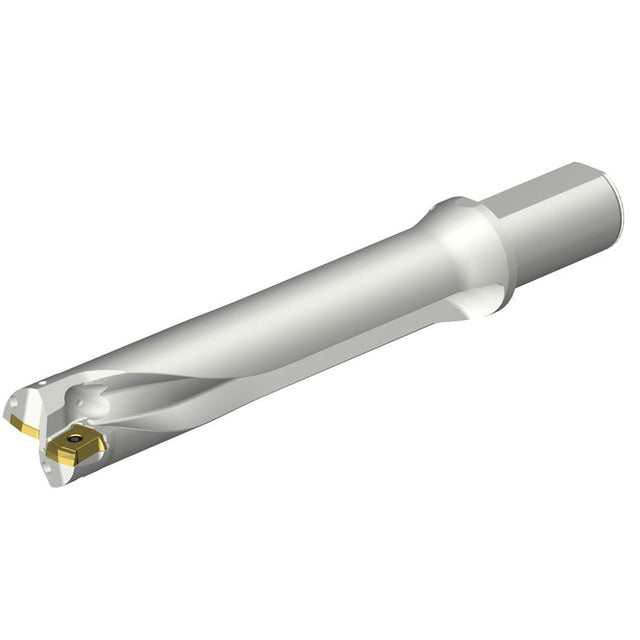

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation

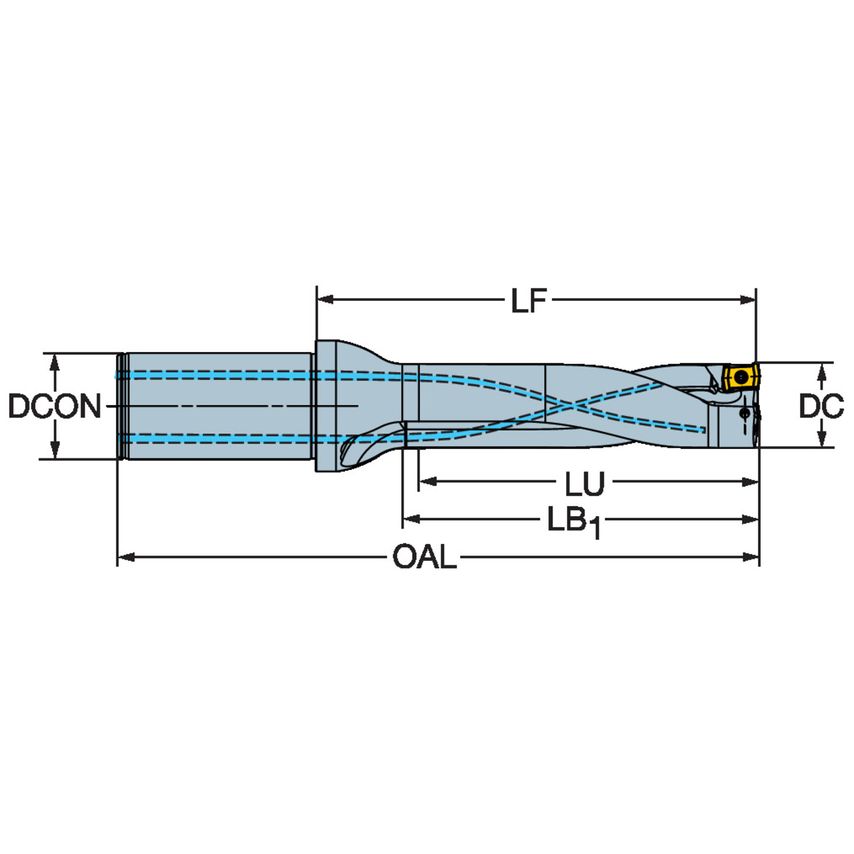

| Coating Type | TiAlN |
| MFR Part No. | 7548965 |
| Usable Length | 207.6516mm |
| CoroPak | 20.2 |
| Weight | 2kg |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Maximum Adjustment Limit | 3.66mm |
| Connection Diameter | 38.1mm |
| Functional Length | 238.6264mm |
| Tool Cutting Edge Angle | 81\u00b0 |
| Overall Length | 309.903mm |
| Cutting Diameter | 41.275mm |
| Rotational Speed Maximum | 5000 1/min |
| Usable Length Diameter Ratio | 5.030929133858 |
| Unit Measured | Imperial |
