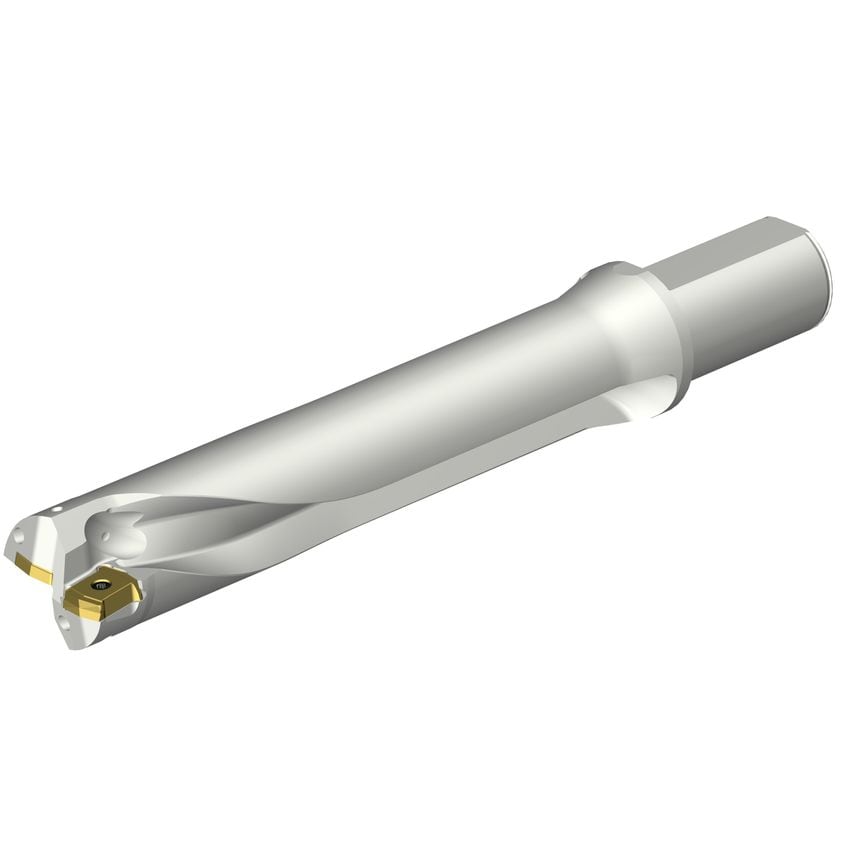

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation

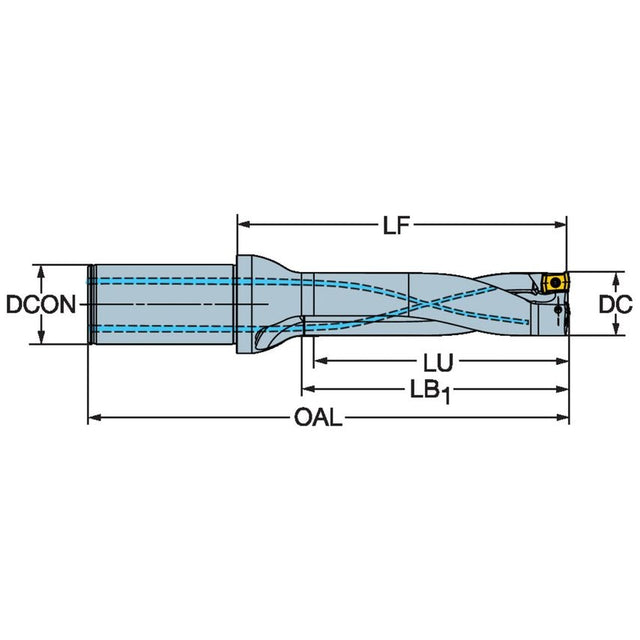

| Unit Measured | Imperial |
| Maximum Adjustment Limit | 3.23mm |
| Rotational Speed Maximum | 5000 1/min |
| Functional Length | 246.3734mm |
| Overall Length | 317.65mm |
| Cutting Diameter | 42.8498mm |
| Usable Length Diameter Ratio | 5.029792437771 |
| Tool Cutting Edge Angle | 81\u00b0 |
| Connection Diameter | 38.1mm |
| MFR Part No. | 7548973 |
| CoroPak | 20.2 |
| Weight | 2.1kg |
| Usable Length | 215.5256mm |
| Through Hole Function Property | Yes |
