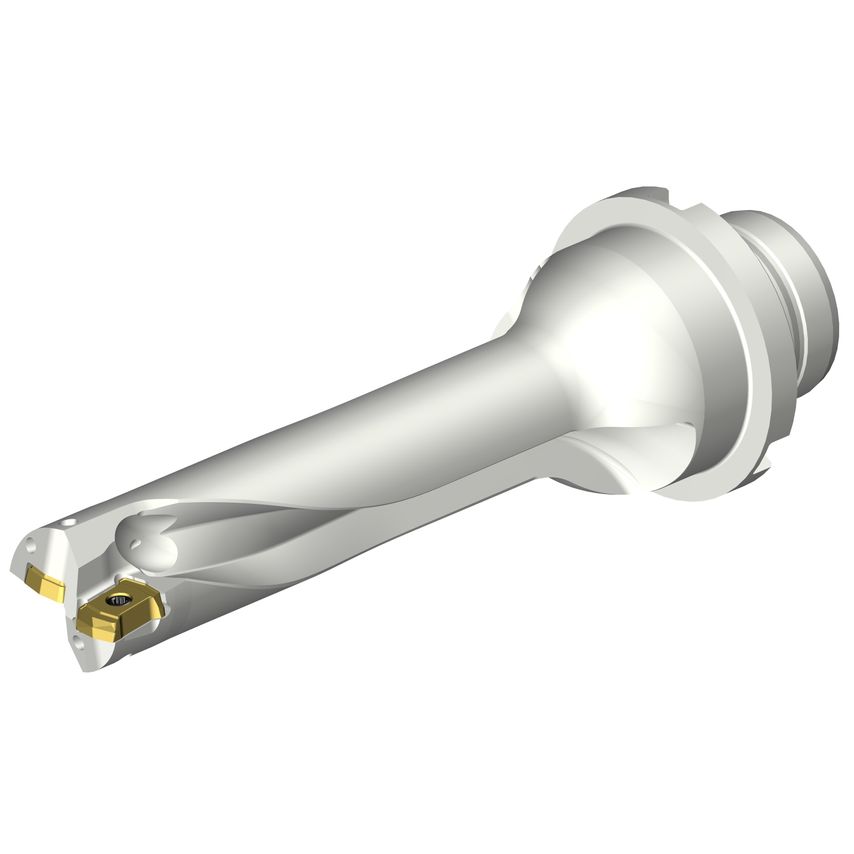

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation
| Through Hole Function Property | Yes |

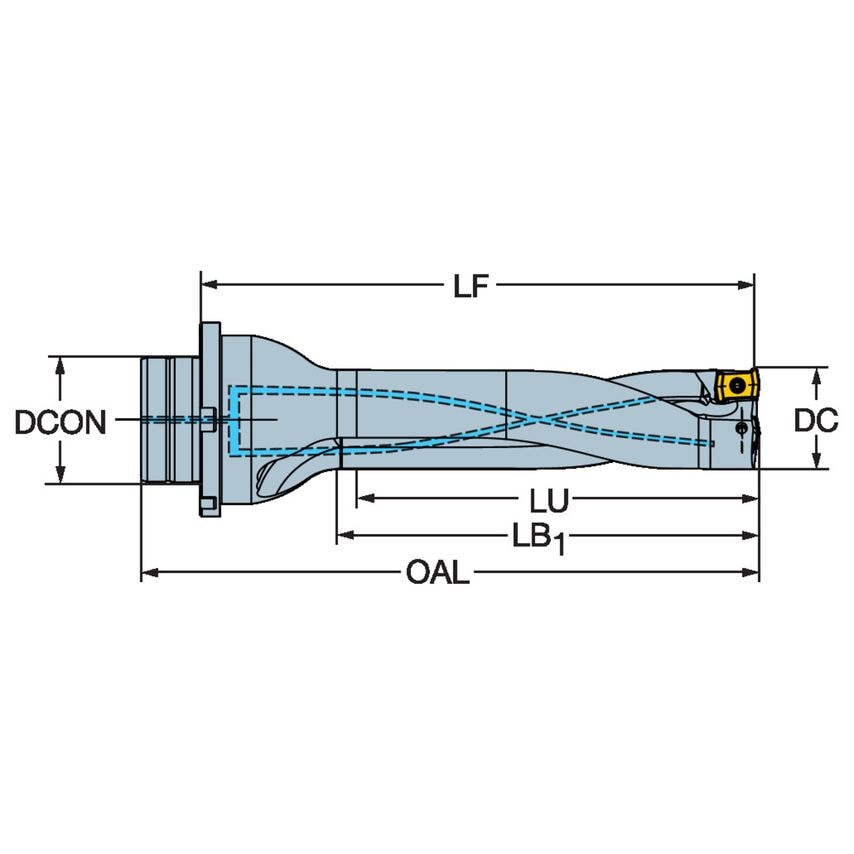

| Connection Diameter | 25mm |
| Rotational Speed Maximum | 19000 1/min |
| CoroPak | 19.2 |
| Unit Measured | Metric |
| Maximum Adjustment Limit | 1.05mm |
| Overall Length | 123.712mm |
| MFR Part No. | 7755870 |
| Cutting Diameter | 19.05mm |
| Usable Length | 76.7577mm |
| Functional Length | 108.1543mm |
| Usable Length Diameter Ratio | 4.029275590551 |
| Tool Cutting Edge Angle | 81\u00b0 |
| Weight | 0.3kg |
