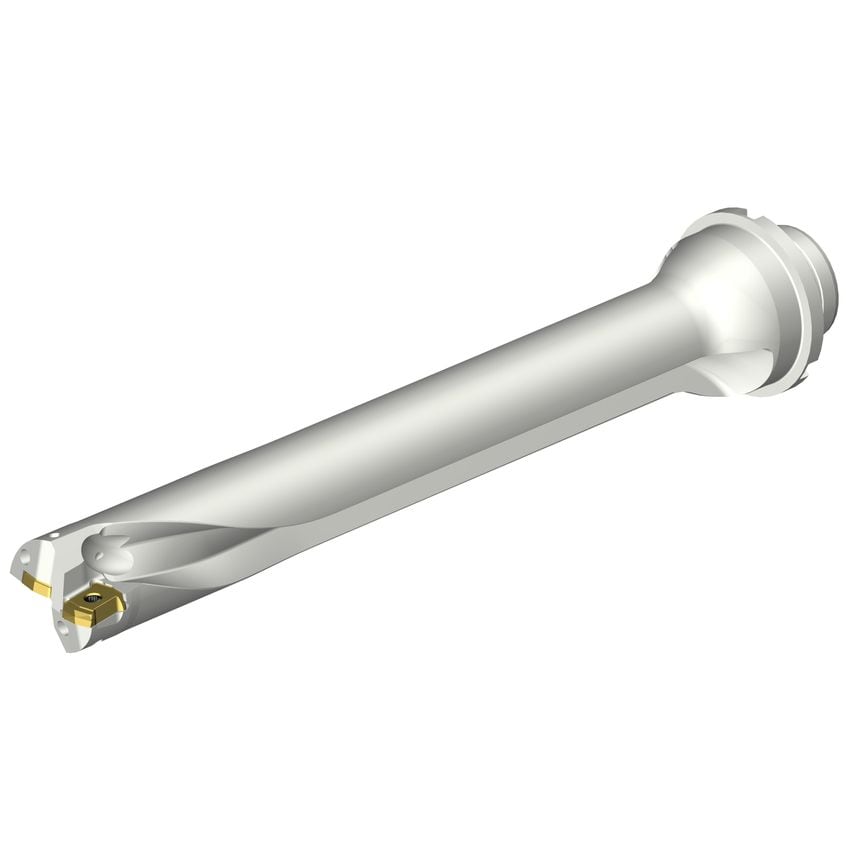

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation
| Overall Length | 264mm |
| MFR Part No. | 7790754 |
| Weight | 1.1kg |
| CoroPak | 20.1 |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Maximum Adjustment Limit | 1.56mm |
| Connection Diameter | 32mm |
| Rotational Speed Maximum | 4000 1/min |
| Usable Length Diameter Ratio | 7.02772 |
| Tool Cutting Edge Angle | 81\u00b0 |
| Cutting Diameter | 30mm |
| Usable Length | 210.8316mm |
| Functional Length | 248.1684mm |
