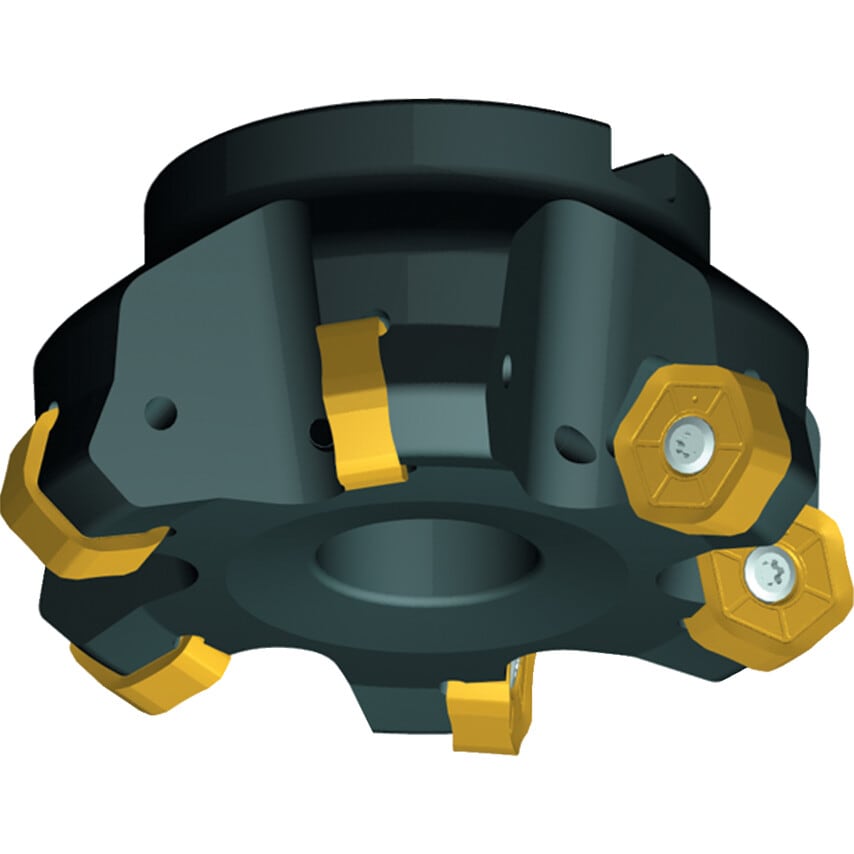

Kennametal Dodeka Face Mills are specifically engineered to deliver consistent performance in demanding rough and finishing face milling applications!
Use less horsepower - and gain up to 30% in productivity.
Up to 50% longer tool life.
Easy-to-use - one screw enables fast, accurate indexing.
12 true cutting edges lower your cost per edge.
Run at higher speeds and feeds - with higher metal-removal rates.
Three new cutter sizes and three new geometries, including a new Wiper insert.
Engineered for applications requiring higher cutting speeds and feed rates with low cutting forces.
Ideally suited for roughing and finishing face milling applications in the General Engineering and
Automotive industries.
4.5mm depth-of-cut capability.
Available in diameters from 40 - 315mm.
Through-coolant standard.
For all technical specifications and inserts please refer to our catalogue.
| ISO Designation | KSHR50A04RS45HN09 |
| Cutting Edge Angle | 45 |
| Coolant Delivery | Coolant Through |
| Series | Dodeka |
| Insert Shape | Hexagon |
| Depth of Cut | 4.5 |
| Insert Holding Type | Screw-On |
| Milling Application | Facing |
| Number of Inserts | 4 |
| Minimum Cutting Diameter | 50 |
| Insert Style | KSHR |
| Product Type | Shell Mill |
| Overall Length | 40 |
| Toolholder Style | KSHR |
| Maximum Cutting Diameter | 61 |
| Body Diameter Max | 315mm |
