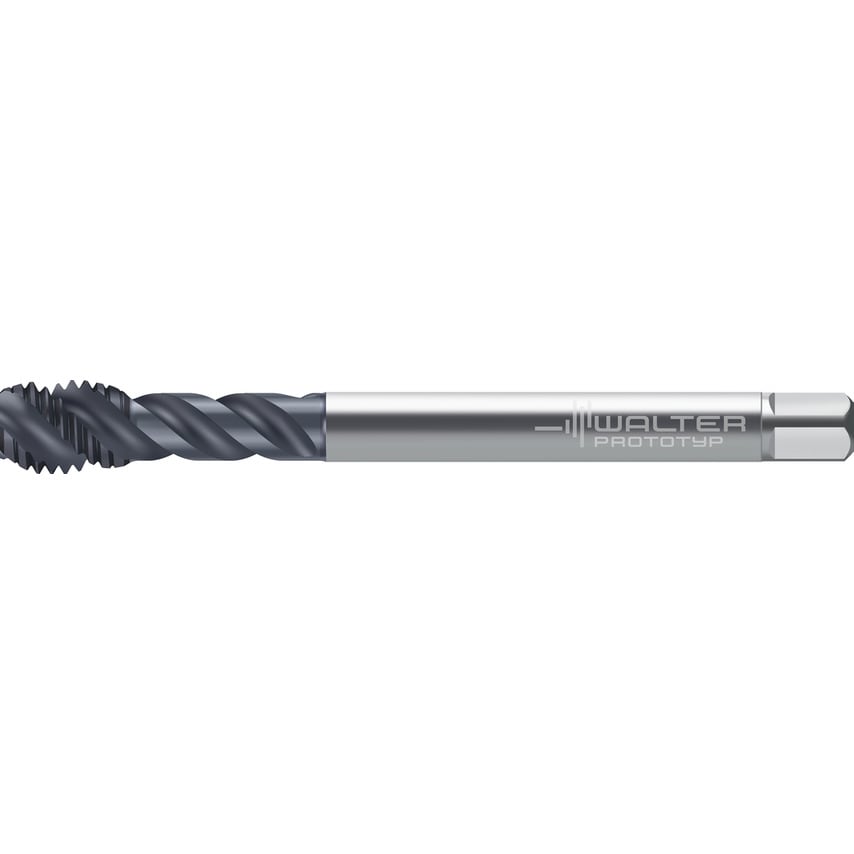

HSS-E (-PM) machine taps Supreme C = 2-3xTP (semi-bottom chamfer) 3xD MF/6HX DIN 374 right hand flute 50 Suitable for blind hole WW60RB MF 8x1 P=0.0394in
| Tool Designation | TC142-M8X1-L0-WW60RB |
| Functional Length | 90mm |
| Clamping Width | 4.9mm |
| Number of Grooves | 3 |
| Thread Size | MF 8x1 |
| Driving Square Length | 8mm |
| Usable Length | 67mm |
| Connection Diameter | 6mm |
| Thread Pitch | 1mm |
| Cutting Edge Length | 12mm |
| MFR Part No. | 6714365 |
