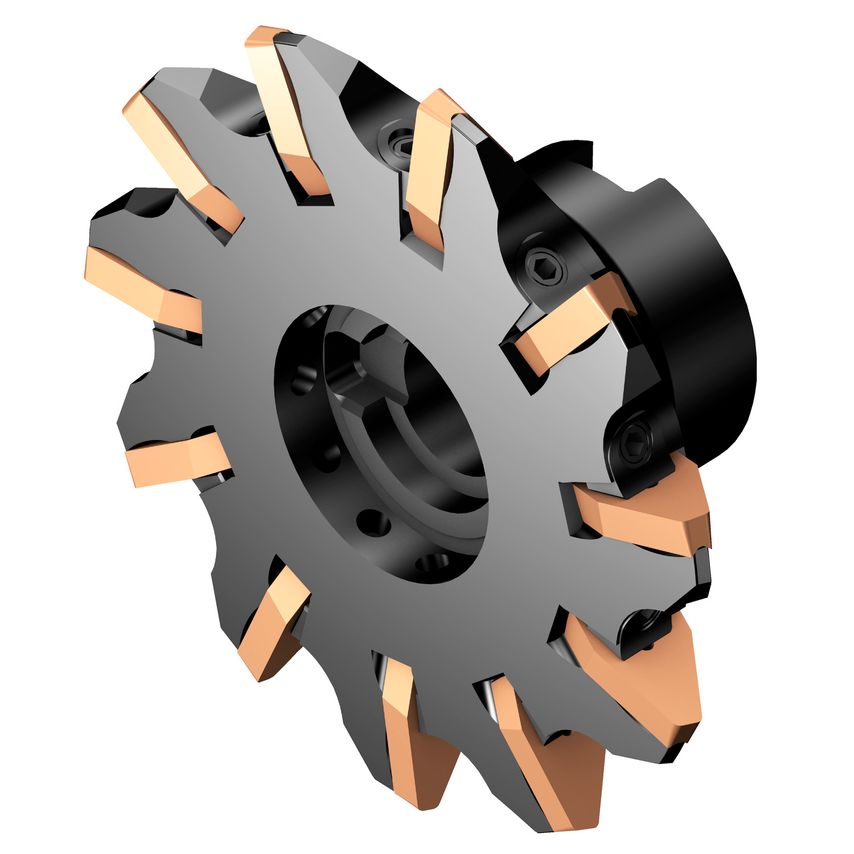

Gear milling with the CoroMill 162 precision cutters, optimized for InvoMilling, is very flexible since the same tools are used for different gear profiles. This means that machining can start right away instead of having to wait for an engineered tool, ideal when machining small batches and when short lead times are a priority.Flexibility- Use the same cutters for many different gear profiles- Small tool inventoryShort total manufacturing time- Start machining right away no need to wait for a gear profile specific tool- Complete components in one set-upGear quality according to DIN 6- The robust cutters are designed to adhere to the requirements of the InvoMilling process and give very accurate gearsFeatures & Benefits- InvoMilling cutters for modules > 1.75 (DP < 14.5)- Start machining right away no need to wait for a gear-profile-specific tool- Complete components in one setup

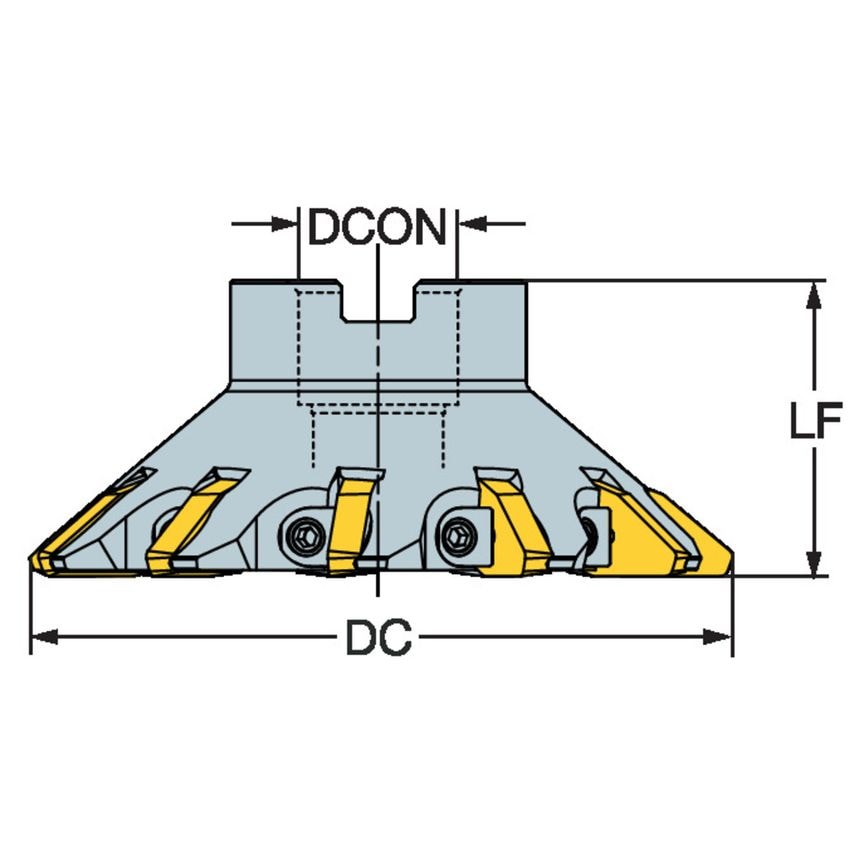

| Unit Measured | Metric |
| MFR Part No. | 6565254 |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 14.7mm |
| Connection Diameter | 27mm |
| Standards Met | ISO6462 |
| CoroPak | 14.2 |
| Hand Preference | Right |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 120mm |
| Body Diameter | 3.62205in |
| Maximum Depth of Cut | 14.7mm |
| Rotational Speed Maximum | 2000 1/min |
| Profile Specification | DIN3272-II /6 |
| Tool Cutting Edge Angle | 70\u00b0 |
| Weight | 1.8kg |
| Functional Length | 51mm |
| Body Material | Steel |
