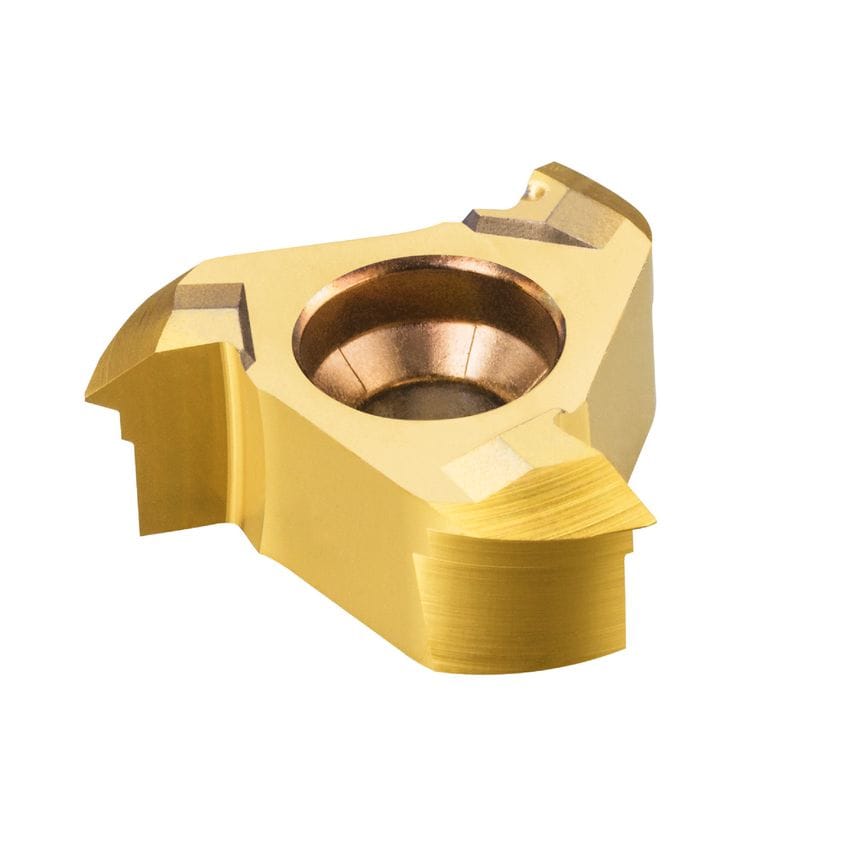

Product Range: CoroMill 327Tool Type: Thread millingA versatile cutter which can be used for many types of grooves, threads and chamfers; machining of eccentric components such as gearbox casings, and high volume assemblies, mainly in machining centres and rotating units in lathes.Features & Benefits- Flexible cutter with multiple edges for many types of applications- Low cutting forces- Large program with different shank lengths and diametersApplication- Circlip grooving, Thread milling, Groove milling, Chamfering, both front and back
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 1025 |
| Weight | 10.1g |
| Connection Diameter | 32mm |
| Insert Size | 12 |
| Body Diameter | 0.77in |
| Maximum Depth of Cut | 1.08mm |
| Thread Form Type | M60 |
| Basic Standard Group | Coromant |
| Adaptive Interface Machine Direction (ADINTMS) | CoroMill 327 - Size 12 |
| Thread Type | Internal |
| Thread Pitch | 2mm |
| Usable Length | 5.85mm |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| Tool Cutting Edge Angle | 30\u00b0 |
| CoroPak | 9.53 |
| Coating Type | TiAlN+TiN |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 1.08mm |
| Coating Process Type | PVD |
| Cutting Diameter | 38mm |
| MFR Part No. | 5758828 |
