CCMT Turning Inserts
CoroTurn107 Turning Inserts for external and internal machining of small and slender components.
80 Rhombic Insert
Insert Grade 2025
(P35)(MM25) CVD Ti(C,N)+Al2O3+TiN coated grade for use on stainless steel
| Manufacturer Grade | 2025 |
| Thickness | 3.97mm |
| Insert Size | 09T304 |
| Shape | 80\u00b0 Rhombic |
| ISO Category Grade | M | P |
| Insert Style | CCMT |
| MFR Part No. | 11146811 |
| Corner Radius | 0.4 |
| Material Application | Stainless Steels | Steels |
| Cutting Direction | Neutral |

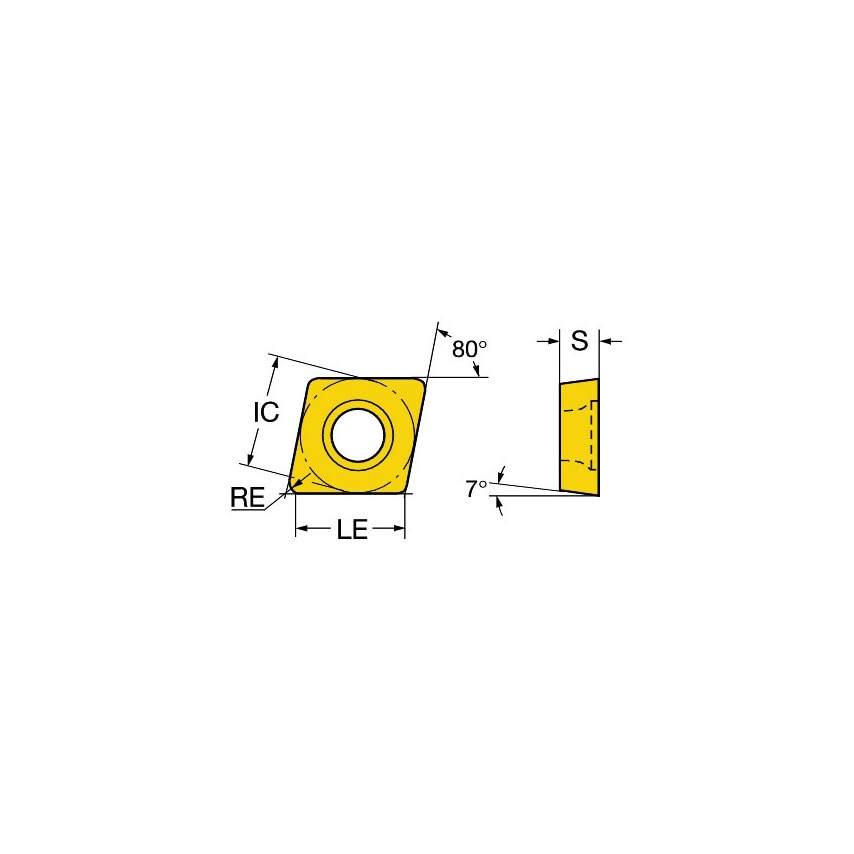

| ISO Designation | CCMT 09T304-MM |
| Finish/Coating | Ti(C |
| Chipbreaker | MM |
| Material | Carbide |
| ISO Cut | M25 | P35 |
| Pack Quantity | 1 |
| Inscribed Circle | 9.525mm |
| ISO Category | M | P |
| Product Type | Inserts |
| Clearance Angle | 7\u00b0 |
| Cutting Edge Length | 9.7mm |
