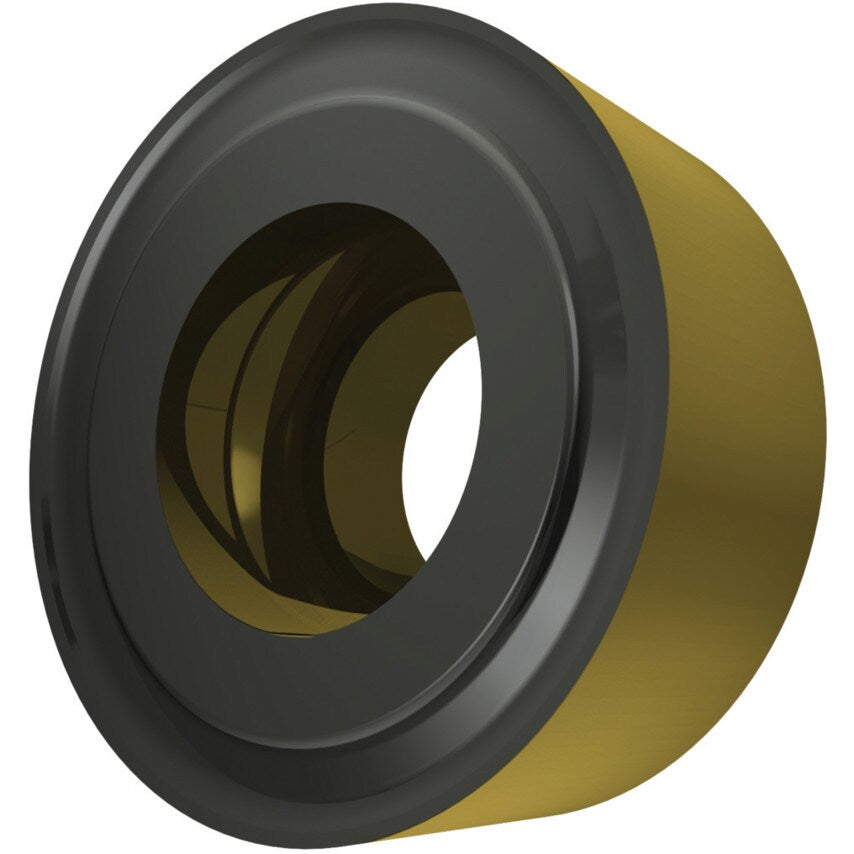

RCMT 1204MOE-UR T9415 Turning Insert - Positive

These single-sided round RCMT turning inserts have a 7 clearance, positive insert geometry, and were designed for the fine to heavy machining of steels. The insert has a diameter of 12.0mm, and a 4.76mm thickness. Features and Benefits The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve toughness and reliability of cutting edge Typical Applications Steel Cast Steel Cast Iron

Finish/Coating	MT-CVD
Insert Size	1204
Insert Style	RCMT
Clearance Angle	7\u00b0
Thickness	4.76mm
Material	Carbide
Chipbreaker	UR
ISO Designation	RCMT1204MOE-UR
Material Application	Steels
Shape	Round
MFR Part No.	8244376
