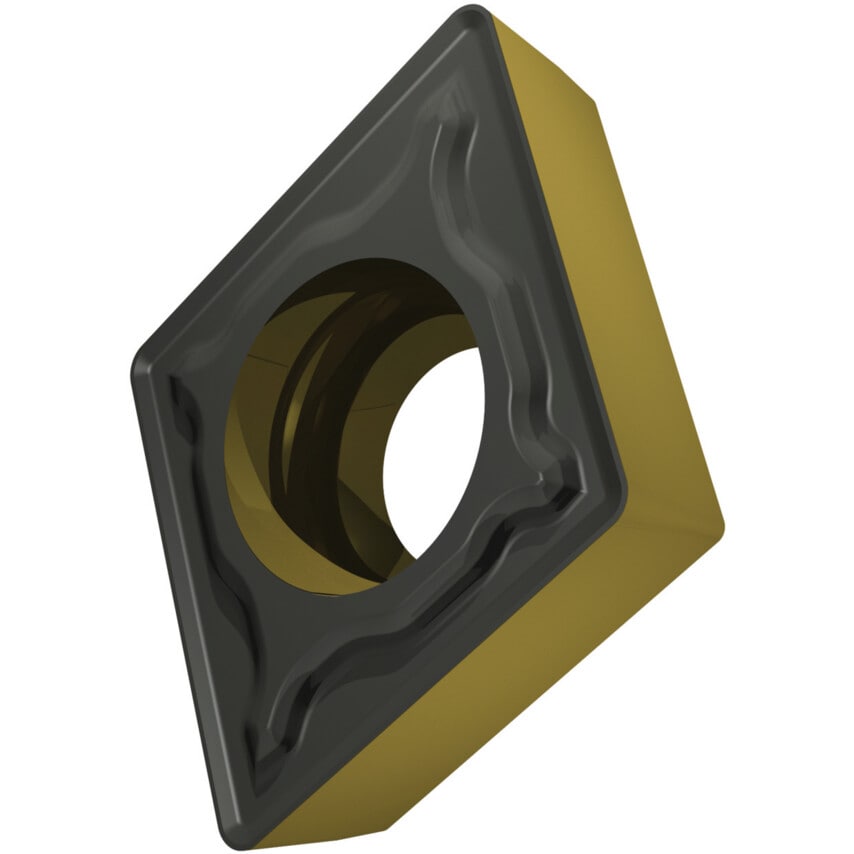

This single-sided 55 rhomboid ECMT turning insert has a positive insert geometry and was designed for the fine to medium machining of steels. The inscribed circle has a diameter of 6.35mm, 2.38mm thickness, and a 0.4mm nose radius.
Features and Benefits
The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel

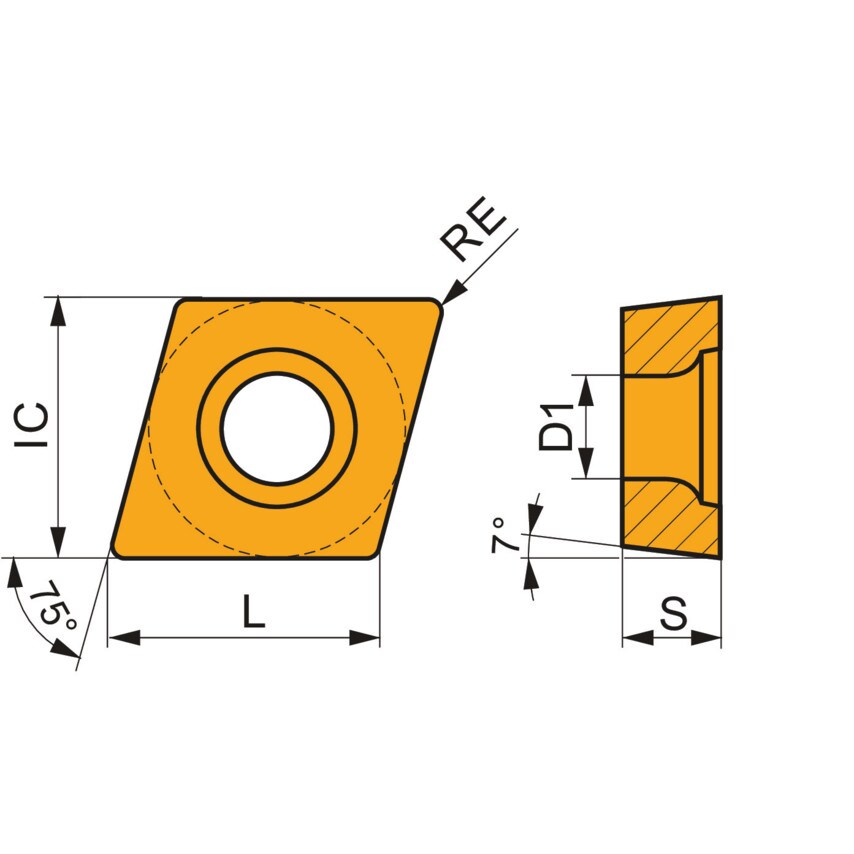

| Finish/Coating | MT-CVD |
| Chipbreaker | FM2 |
| Insert Size | 6 |
| Cutting Edge Length | 6.5mm |
| Corner Radius | 0.4mm |
| Material | Carbide |
| Shape | 75\u00b0 Rhombic |
| Clearance Angle | 7\u00b0 |
| MFR Part No. | 8345944 |
| ISO Designation | ECMT060204E-FM2 |
| Inscribed Circle | 6.35mm |
| Thickness | 2.38mm |
