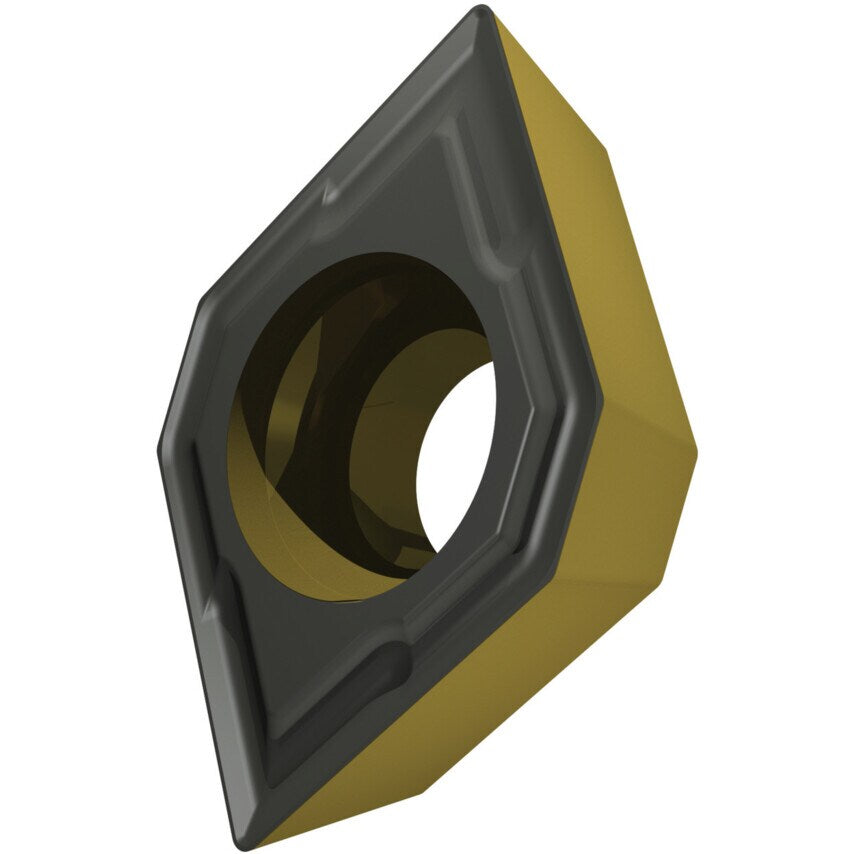

This single-sided 55 rhomboid ECMT turning insert has a positive insert geometry and was designed for the fine to medium machining of steels. The inscribed circle has a diameter of 5.56mm, 3.18mm thickness, and a 0.2mm nose radius.
Features and Benefits
The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel

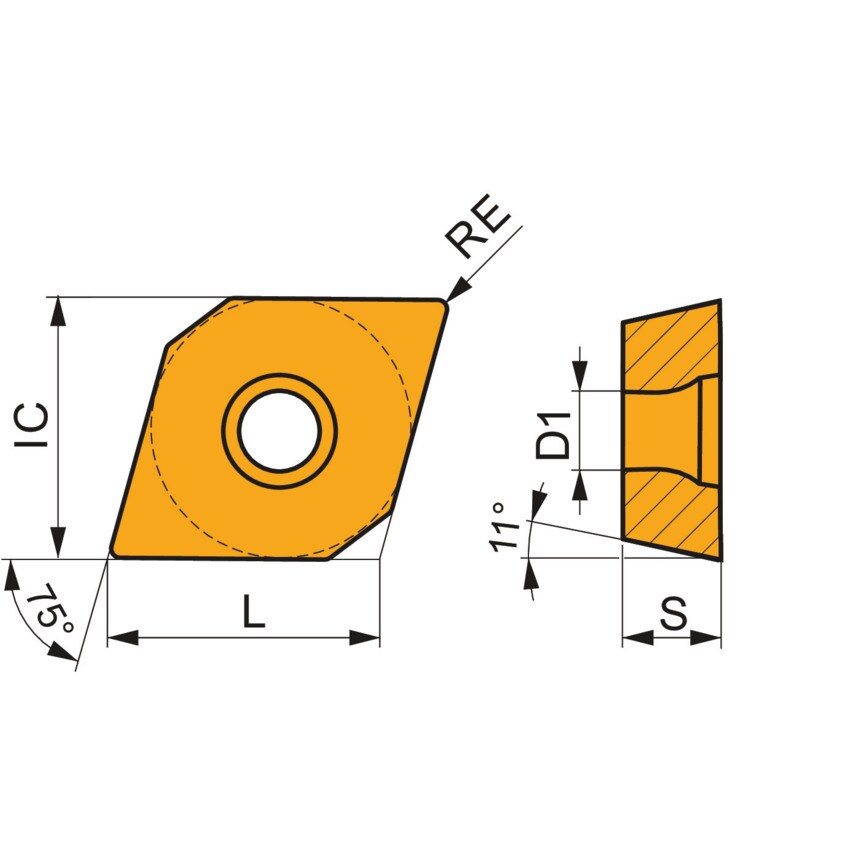

| Insert Size | 5 |
| Cutting Edge Length | 5.7mm |
| MFR Part No. | 8345947 |
| Shape | 75\u00b0 Rhombic |
| ISO Designation | EPMT050202E-NF2 |
| Thickness | 2.38mm |
| Finish/Coating | MT-CVD |
| Material | Carbide |
| Inscribed Circle | 5.56mm |
| Corner Radius | 0.2mm |
| Clearance Angle | 11\u00b0 |
| Chipbreaker | NF2 |
