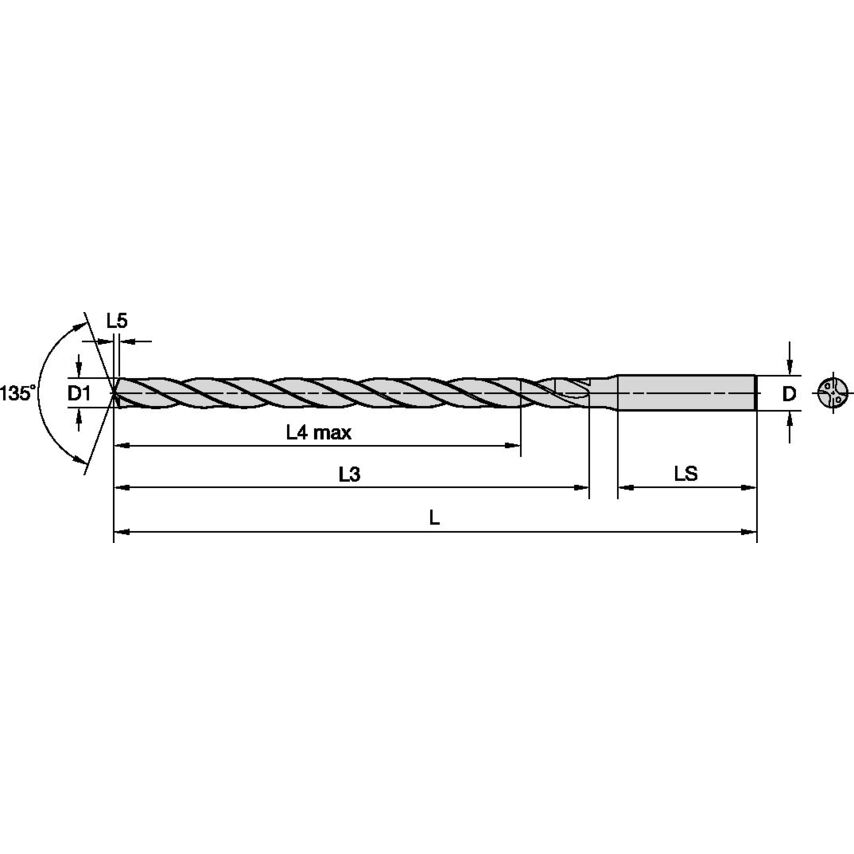

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Drill Point | 3.161mm |
| Material | Carbide |
| Drill Diameter | 17.0000mm |
| Unit Measured | Metric |
| Clamping Length | 48mm |
| Helix Angle | 28.105 |
| MFR Part No. | 4169313 |
| Adapter Style | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Construction | Helical Flute |
| Drill Depth | 214mm | 214.0000mm |
| Coolant Supplied | Yes |
| Overall Length | 305mm | 305.0000mm |
| Adapter Type | Cylindrical |
| Hand Preference | Right |
| Functional Length | 301.8390mm |
| Adapter / Shank / Bore Diameter | 18.0000mm |
| Primary Material | Steel |
| Shank Length | 48.0000mm |
| Finish/Coating | TiAlN |
| Assembly Length | 253.839mm |
| Helix Type | Right Hand Helix/Flute |
| Flute Length | 250mm | 250.0000mm |
