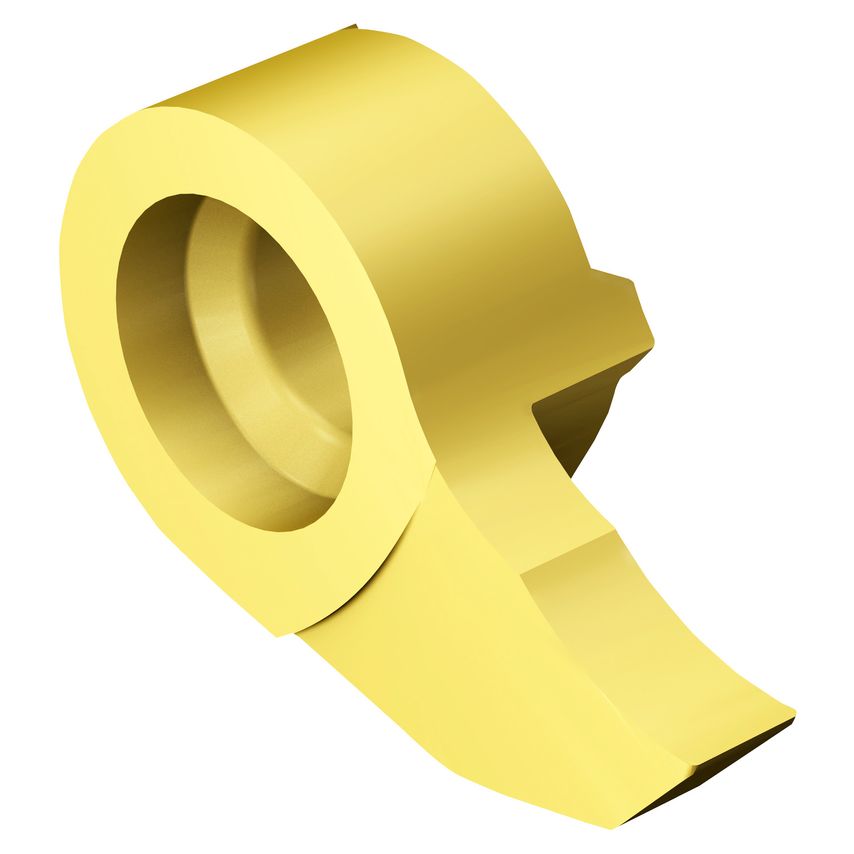

CoroCut MB is a high precision system for grooving, face grooving, profiling and pre-parting. The edge line of the cutting edge is sharp with a thin-layered coating, which in combination with the stability of the tools makes it ideal for internal machining.Features & Benefits- Internal turning, diameters from 10 mm- Turning, threading, parting and grooving- Close - Front-mounted exchangeable cutting tool- Sharp cutting edges- Geometries and grades for all materials- Carbide shanks for long overhangs- Through coolant- Easy fix clamping- Grooving tools in a large variety of widths and corner radii also for standardized grooves such as O-rings and circlip grooves.Application- Finish and precision machining at low feeds and speeds- For shallow grooves- Thread turning, turning, back boring, face grooving, profiling and pre-parting operations- Dedicated face grooving holder with nozzles for high precision coolant
| Coating Type | TiAlN+TiN |
| Connection Diameter | 9mm |
| Unit Measured | Metric |
| Maximum Overhang | 5.3mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 3.5g |
| Minimum Bore Diameter | 14mm |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 5735699 |
| Cutting Width | 38mm |
| CoroPak | 80 |
| Maximum Cutting Depth | 4mm |
| Hand Preference | Right |
| Through Hole Function Property | Yes |
| Functional Length | 5.3mm |
| Grade | 1025 |
