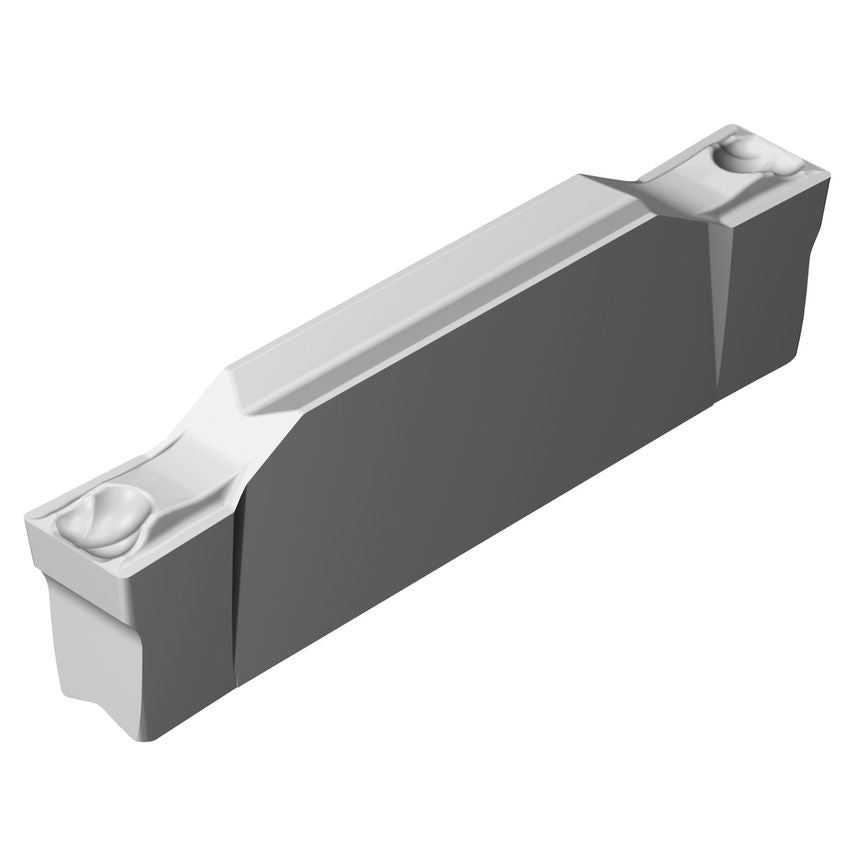

Product Range: CoroCut 1-2Tool Type: Parting and GroovingVersatile parting and grooving. Cost efficiency with two edges. Secure and efficient machining.With more than 700 standard inserts, CoroCut 1-2 covers all parting and grooving applications in most materials, from standardized grooves to parting off and profiling in heat resistant super alloys.Features & Benefits- Versatile parting and grooving- Geometries and grades for all application areas- Precision over and under coolantApplicationParting, external grooving, face grooving, internal grooving, profiling and hard part turningRoughing to finishingIn parting off and external grooving CoroCut 1-2 is a cost-efficient solution to depths where the 2-edged inserts can be used.
| Maximum Cutting Depth | 19.3mm |
| Insert Mounting Style | Clamp |
| ISO Cutting Tool Material | Uncoated WC grain size >=1 |
| Weight | 2.3g |
| Unit Measured | Metric |
| Coating Type | Uncoated |
| Cutting Edge Count | 1 |
| Manufacturer Grade | H13A |
| Through Hole Function Property | Yes |
| Clearance Angle Major | 7\u00b0 |
| Hand Preference | Neutral |
| Machine Side Body Angle | 0\u00b0 |
| Cutting Width | 1.85mm |
| MFR Part No. | 5735666 |
| Grade | H13A |
| Insert Size/Shape | CoroCut 1-2 - Size E2 |
| Coating Process Type | Uncoated |
| CoroPak | 1.2 |
