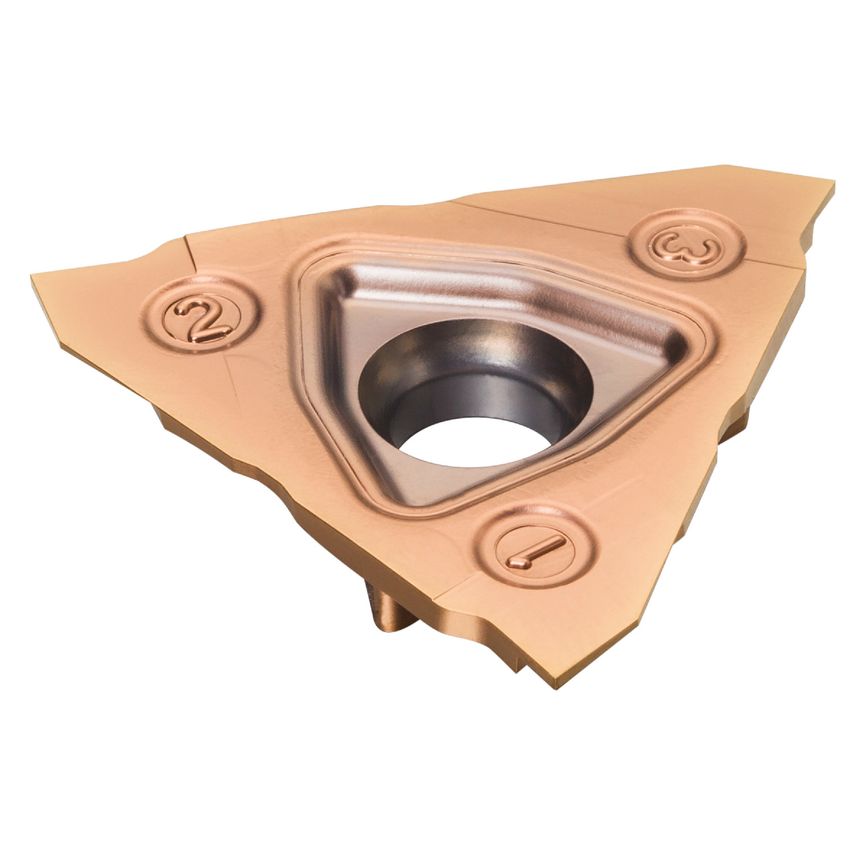

Product Range: CoroCut 3CoroCut 3 is a complete solution for narrow precision grooving and circlip grooving. It is your first choice for cost efficient parting-off in mass production you can save kilometers of material by reducing the insert width with CoroCut 3.Features & Benefits- Cost-efficient shallow parting and grooving- Precision grooving down to the smallest widths- Close tolerancesApplication- Geometries and grades for ISO P, M, K, and S materials- Parting off diameters less than 12 mm (0.5 inch) or thin walled rings- First choice for parting off bearing rings
| Weight | 4.9g |
| Insert Size/Shape | CoroCut 3 -style U |
| Cutting Edge Count | 3 |
| Coating Process Type | PVD |
| Hand Preference | Neutral |
| Cutting Width | 0.9mm |
| CoroPak | 9.1 |
| Unit Measured | Metric |
| Grade | 1125 |
| Clearance Angle Major | 7\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 5737090 |
| Maximum Cutting Depth | 2mm |
| Insert Mounting Style | Screw/Clamp |
| Through Hole Function Property | Yes |
| Machine Side Body Angle | 0\u00b0 |
| Coating Type | TiAlN |
