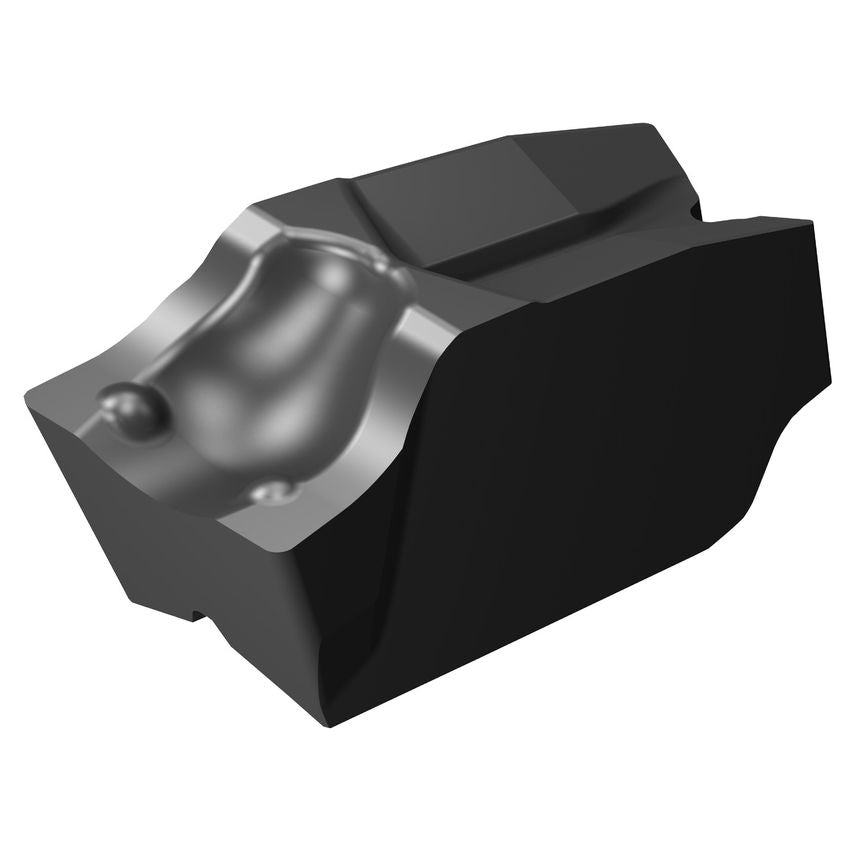

Secure face groovingInnovative blade designMore material in the weakest cross-section and decreased mass in the front part of the blade provide higher dynamic stiffness, effectively reducing vibration. The slit is optimized to provide correct clamping force. Insert design optimized for stable face groovingTilted insert with stabilizing rails at the top, bottom and back of the insert to minimize insert movement. Precision Coolant SupplyImproves chip evacuation and decreases the risk for chip jamming, critical factors for successful deep face grooving operations. Effective from low to high coolant pressures.Features & Benefits- First choice for deep face grooving for diameters over 30 mm- Reliable performance in tough conditions- Precision over and under coolant
| Insert Size/Shape | CoroCut QFT - Size G |
| Clearance Angle Major | 7\u00b0 |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 1105 |
| Unit Measured | Metric |
| MFR Part No. | 7193271 |
| Cutting Edge Count | 1 |
| Cutting Width | 3mm |
| Coating Process Type | PVD |
| CoroPak | 18.2 |
| Machine Side Body Angle | 0\u00b0 |
| Coating Type | TiAlN |
| Hand Preference | Neutral |
| Insert Mounting Style | Clamp |
