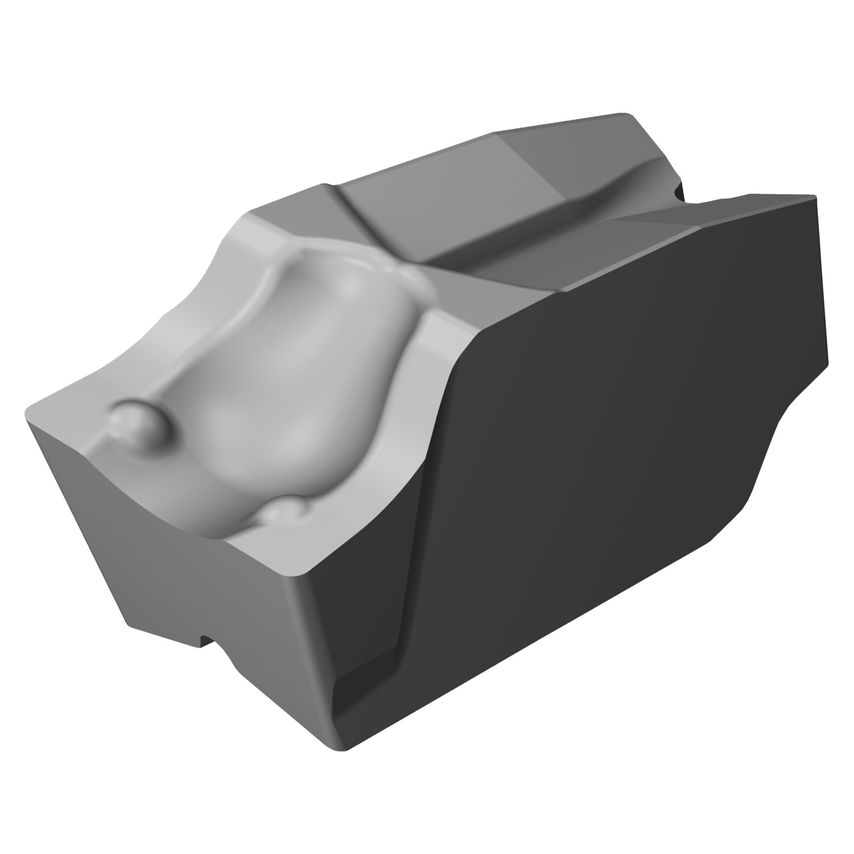

Secure face groovingInnovative blade designMore material in the weakest cross-section and decreased mass in the front part of the blade provide higher dynamic stiffness, effectively reducing vibration. The slit is optimized to provide correct clamping force. Insert design optimized for stable face groovingTilted insert with stabilizing rails at the top, bottom and back of the insert to minimize insert movement. Precision Coolant SupplyImproves chip evacuation and decreases the risk for chip jamming, critical factors for successful deep face grooving operations. Effective from low to high coolant pressures.Features & Benefits- First choice for deep face grooving for diameters over 30 mm- Reliable performance in tough conditions- Precision over and under coolant
| Through Hole Function Property | Yes |
| Clearance Angle Major | 7\u00b0 |
| Grade | H10F |
| CoroPak | 18.2 |
| MFR Part No. | 7193311 |
| ISO Cutting Tool Material | Uncoated WC |
| Coating Process Type | Uncoated |
| Insert Mounting Style | Clamp |
| Insert Size/Shape | CoroCut QFU - Size H |
| Cutting Width | 4mm |
| Machine Side Body Angle | 0\u00b0 |
| Unit Measured | Metric |
| Cutting Edge Count | 1 |
| Hand Preference | Neutral |
| Coating Type | Uncoated |
