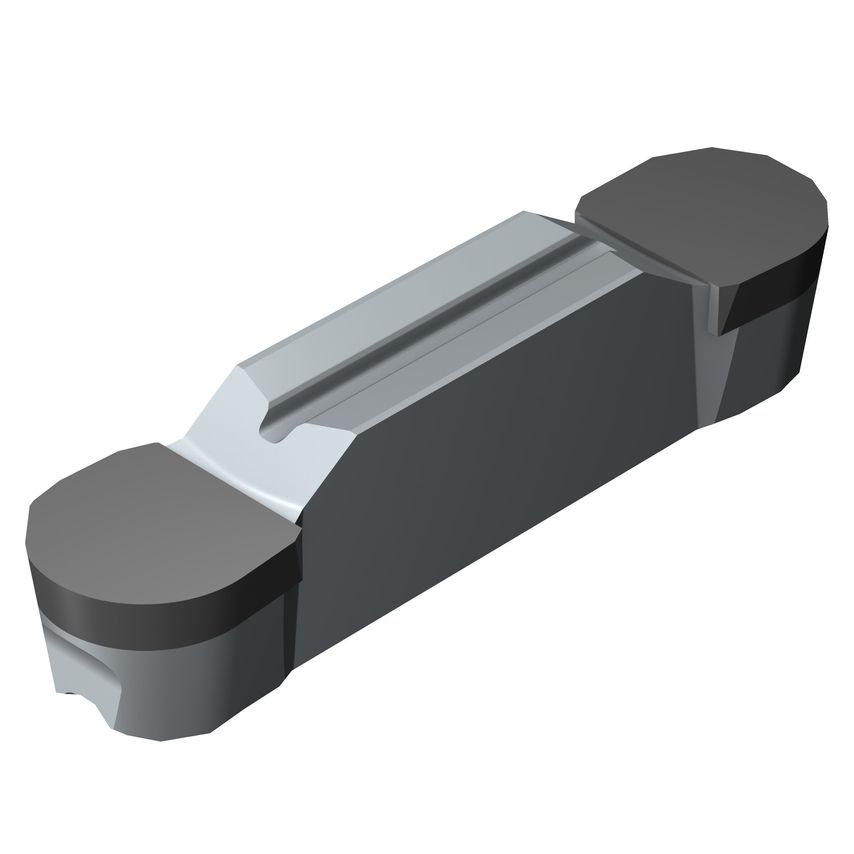

Product Range: CoroCut 1-2Tool Type: Parting and GroovingVersatile parting and grooving. Cost efficiency with two edges. Secure and efficient machining.With more than 700 standard inserts, CoroCut 1-2 covers all parting and grooving applications in most materials, from standardized grooves to parting off and profiling in heat resistant super alloys.Features & Benefits- Versatile parting and grooving- Geometries and grades for all application areas- Precision over and under coolantApplicationParting, external grooving, face grooving, internal grooving, profiling and hard part turningRoughing to finishingIn parting off and external grooving CoroCut 1-2 is a cost-efficient solution to depths where the 2-edged inserts can be used.
| Weight | 6g |
| Machine Side Body Angle | 0\u00b0 |
| Through Hole Function Property | Yes |
| Clearance Angle Major | 7\u00b0 |
| Unit Measured | Metric |
| Cutting Width | 38mm |
| Coating Type | Uncoated |
| Maximum Depth of Cut | 0.7mm |
| Hand Preference | Neutral |
| CoroPak | 20 |
| Coating Process Type | Uncoated |
| ISO Cutting Tool Material | Uncoated Ceramic AL2O3 |
| Corner Radius | 25.4mm |
| Insert Mounting Style | Clamp |
| Grade | 6220 |
| Insert Size/Shape | CoroCut 1-2 - Size H1 |
| MFR Part No. | 8070482 |
| Cutting Edge Count | 4 |
| Maximum Cutting Depth | 0.7mm |
| ISO Category Grade | N |
