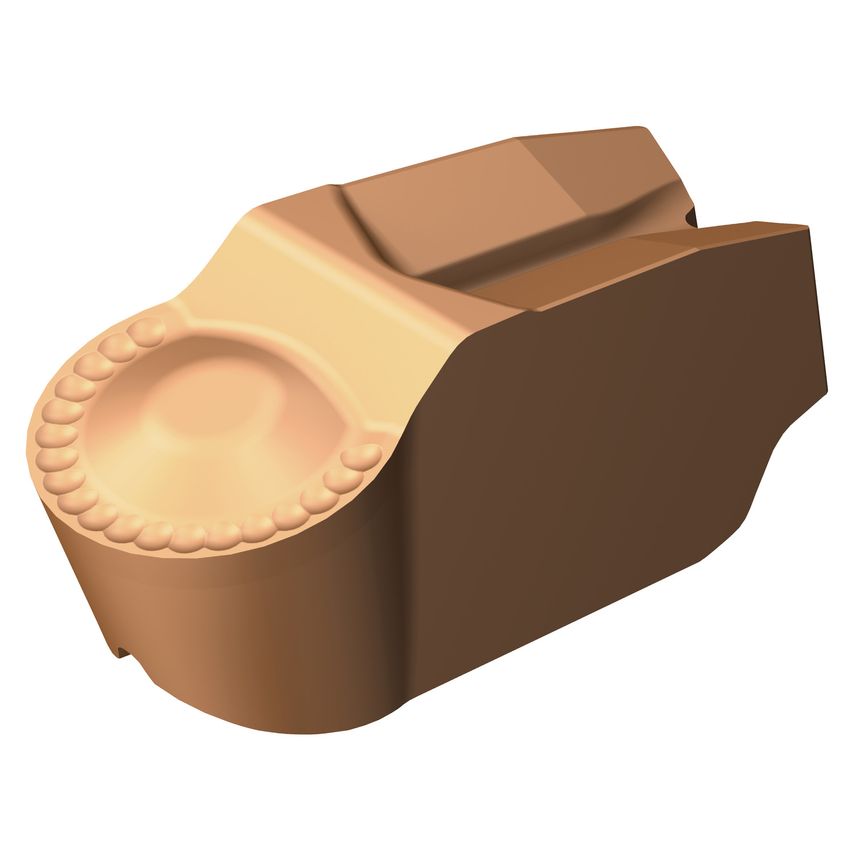

Secure face groovingInnovative blade designMore material in the weakest cross-section and decreased mass in the front part of the blade provide higher dynamic stiffness, effectively reducing vibration. The slit is optimized to provide correct clamping force. Insert design optimized for stable face groovingTilted insert with stabilizing rails at the top, bottom and back of the insert to minimize insert movement. Precision Coolant SupplyImproves chip evacuation and decreases the risk for chip jamming, critical factors for successful deep face grooving operations. Effective from low to high coolant pressures.Features & Benefits- First choice for deep face grooving for diameters over 30 mm- Reliable performance in tough conditions- Precision over and under coolant
| Weight | 4.79g |
| Cutting Edge Count | 1 |
| Cutting Width | 6mm |
| Coating Type | TiAlN |
| Insert Size/Shape | CoroCut QFT - Size K |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 19.1 |
| Clearance Angle Major | 7\u00b0 |
| Maximum Cutting Depth | 2.75mm |
| Through Hole Function Property | Yes |
| Machine Side Body Angle | 0\u00b0 |
| Insert Mounting Style | Clamp |
| Corner Radius | 3mm |
| MFR Part No. | 7582648 |
| Maximum Depth of Cut | 2.75mm |
| Hand Preference | Neutral |
| Coating Process Type | PVD |
| Grade | 1125 |
| Unit Measured | Metric |
