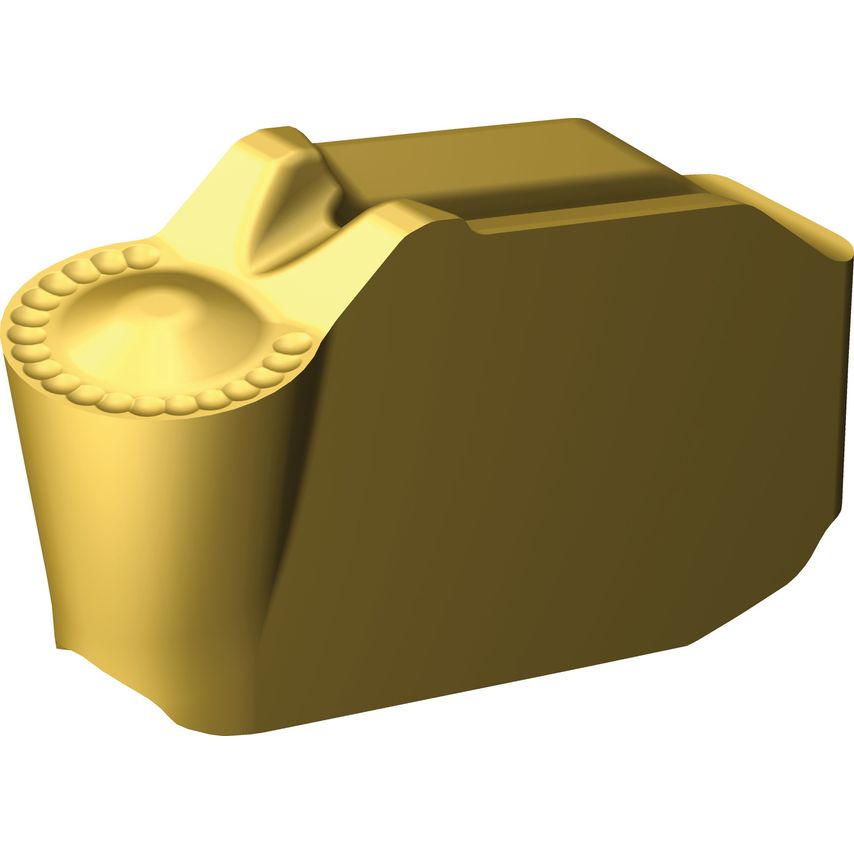

First choice for parting off and deep grooving- Reliable performance in tough conditions- Precision over and under coolant
| Through Hole Function Property | Yes |
| Coating Type | TiCrN+Al2O3+TiN |
| Corner Radius | 1.5mm |
| Weight | 3.1g |
| Coating Process Type | CVD |
| CoroPak | 19.2 |
| MFR Part No. | 7690516 |
| Unit Measured | Metric |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 1.25mm |
| Clearance Angle Major | 7\u00b0 |
| Insert Size/Shape | CoroCut QD - Size G |
| Cutting Edge Count | 1 |
| Insert Mounting Style | Clamp |
| Hand Preference | Neutral |
| Cutting Width | 38mm |
| Machine Side Body Angle | 0\u00b0 |
| Grade | 1135 |
| Maximum Cutting Depth | 1.25mm |
