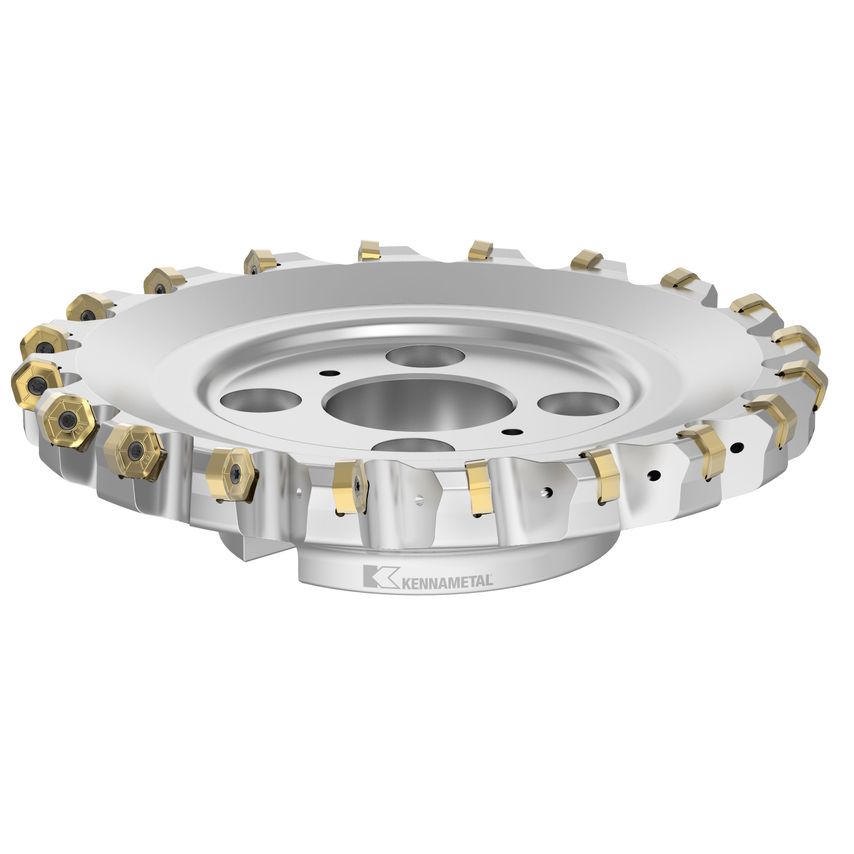

Shell Mills
Dodeka 45
| Body Material | Steel |
| Hand Preference | Right |
| Max. Depth of Cut | 4.5100mm |
| Center Cutting Tool | No Center Cutting |
| Number of Inserts | 16 |
| Number of Flutes | 16 |
| Unit Measured | Imperial |
| Hub Diameter | 119.95mm | 119.9500mm |
| Milling Application | Face Mill |
| Adapter Type Machine Side | Shell Mill |
| Clamp Type | Screw Clamping |
| Coolant Supplied | Yes |
| Maximum Cutting Diameter | 163.37mm |
| MFR Part No. | 3326931 |
| Body Diameter Max | 159.8mm |
| Insert Shape | H-Hexagon 120 |
