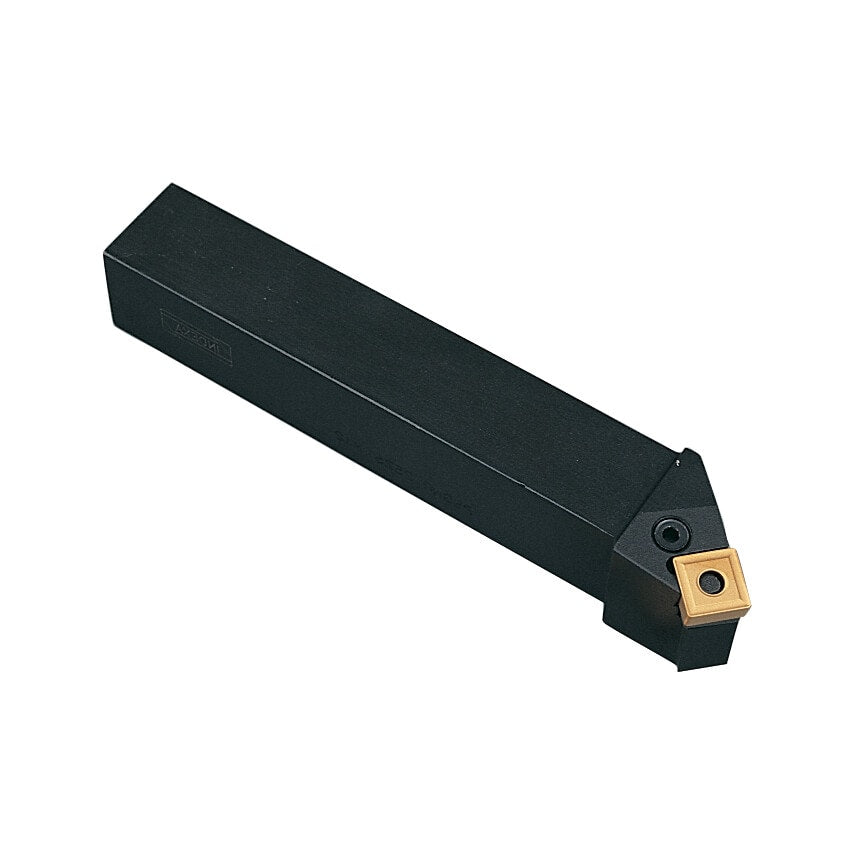

45 offset approach for negative square inserts.

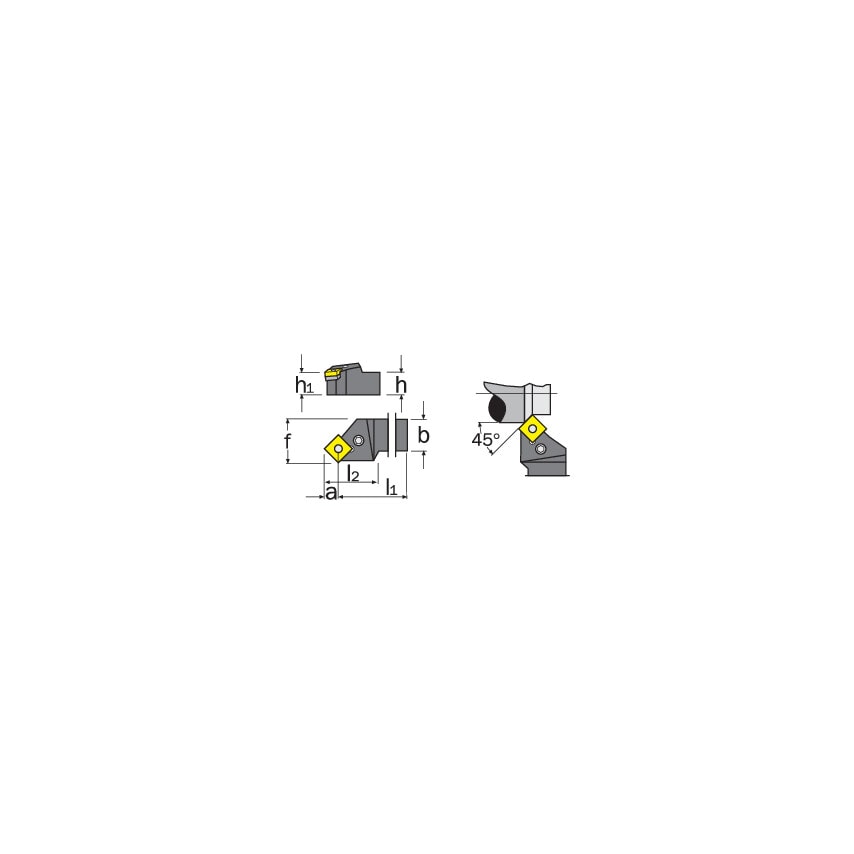

| Set Type | Individual Toolholder |
| Shank Style | Offset |
| Head Length (l2) | 28 |
| MFR Part No. | PSSNL2525M12 |
| Cutting Height (h1) | 25mm |
| Insert Shape | Square |
| Insert Holding Type | Lever Lock |
| Cutting Direction | Left Hand |
| Shank Height | 25.00mm |
| Shank Width (b) | 25 |
| Centre to Cutting Tip | 32mm |
| Approach Angle | 45\u00b0 |
| Insert Size | 1204 |
| Overall Length (l1) | 150mm |
| Clearance Angle | 0\u00b0 |
| Shank Height (h) | 25mm |
| Overall Length | 150.00mm |
| Side to Cutting Tip (f) | 32 |
| Coolant Delivery | External |
| ISO Designation | PSSNL 2525M12 |
| Shank Material | Steel |
| Cutting Height | 25.00mm |
| Toolholder Style | PSSN |
| Insert Style | SN_A | SN_G |
| Neck Length | 28mm |
