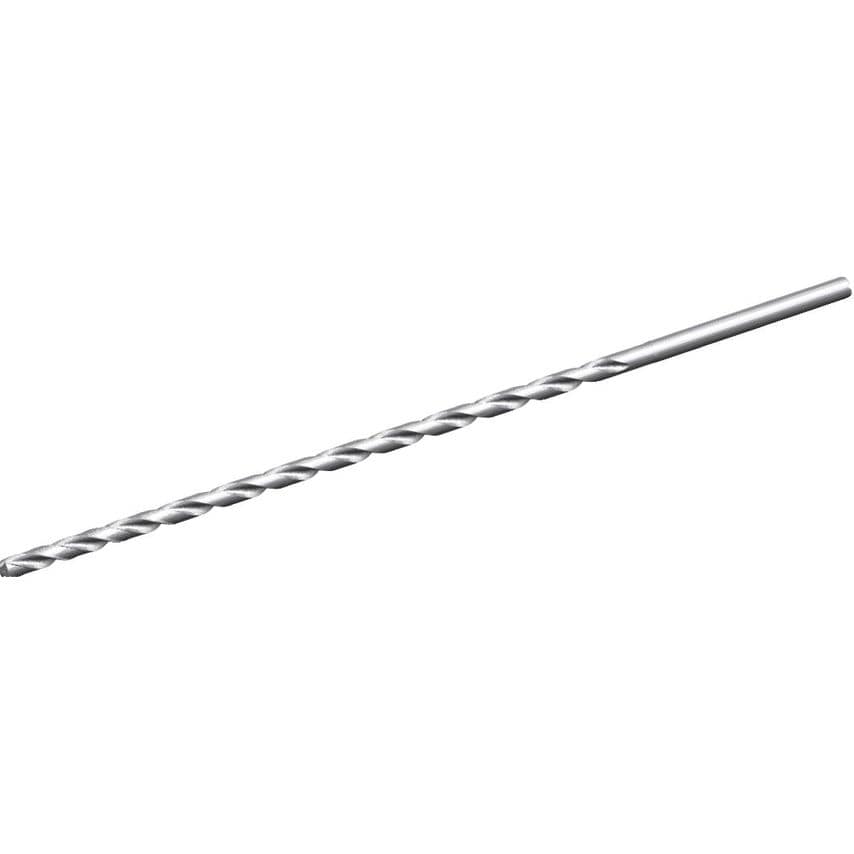

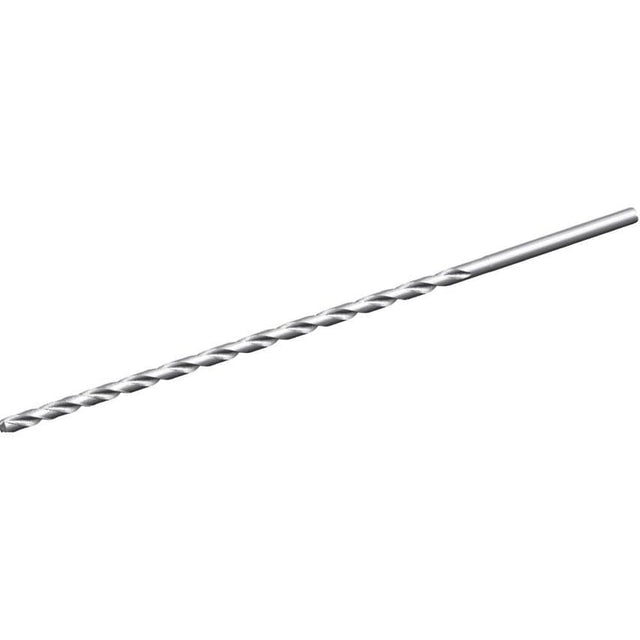

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Adapter Type | Cylindrical |
| Adapter Style | Straight-Cylindrical |
| Hand Preference | Right |
| Coolant Supplied | Yes |
| Drill Diameter | 11.0000mm |
| Drill Depth | 330mm | 330.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Finish/Coating | Uncoated |
| Shank Length | 46.0000mm |
| MFR Part No. | 3891711 |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Adapter / Shank / Bore Diameter | 11.0000mm |
| Functional Length | 400.9700mm |
| Primary Material | Non-Ferrous Materials |
| Helix Type | Right Hand Helix/Flute |
| Unit Measured | Metric |
| Flute Length | 354mm | 354.0000mm |
| Helix Angle | 30.787 |
| Drill Point | 2.03mm |
| Flute Construction | Helical Flute |
| Coolant Diameter | 1.6000mm (0.0504in) |
| Assembly Length | 354.97mm |
| Overall Length | 403mm | 403.0000mm |
| Material | Carbide |
| Clamping Length | 36.525mm |
| Number of Flutes | 2 |
