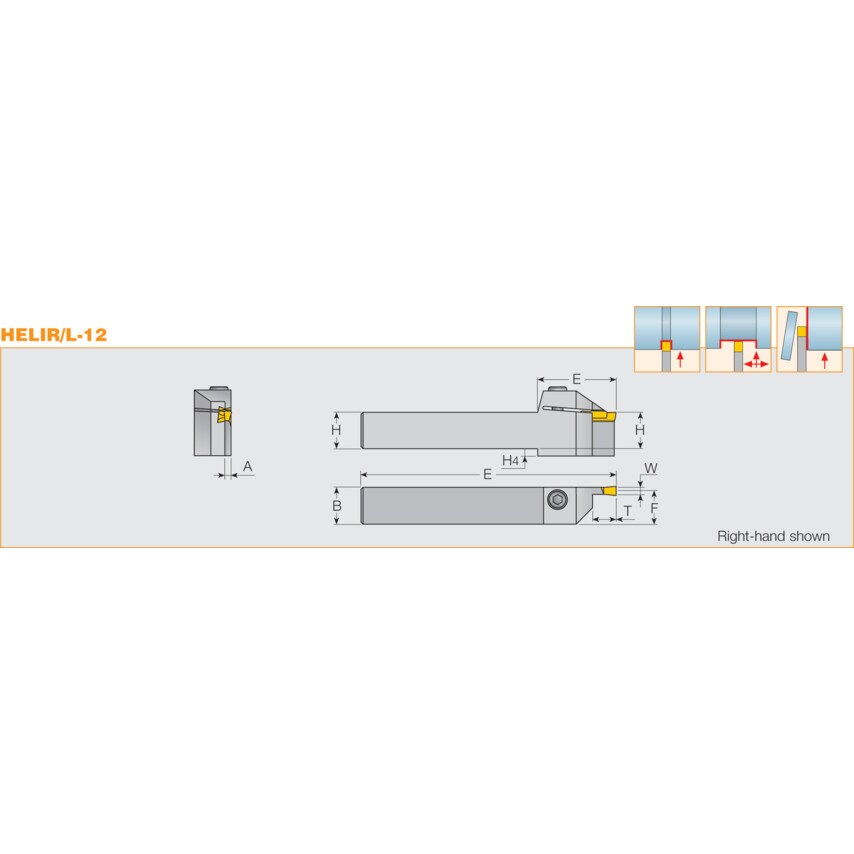

Left Hand External Machining Tool HoldersFor all dimensional specifications please refer to our catalogue.
| Workpiece Diameter | 50 |
| Coolant Delivery | External |
| Insert Style | DGN | GRIP | HFPR |
| MFR Part No. | 2500440 |
| Maximum Grooving Width | 4.76mm |
| ISO Designation | HELIR 2525-4T25 |
| Cutting Height | 25mm |
| Blade Style | HELI-GRIP |
| Blade Width | 3.2mm |
| Number of Pockets | 1 |
| Minimum Grooving Width | 4mm |
| Cutting Application | Groove-Turn | Grooving |
| Side to Cutting Tip | 23.4mm |
| Seat Size | 4 |
| Cutting Direction | Right Hand |
| Compatible Shank Size | 25x25 |
| Maximum Grooving Depth | 25mm |
| Blade Length | 140mm |
| Blade Type | Groove-Turn | Grooving |
| Series | Heli-Grip |
