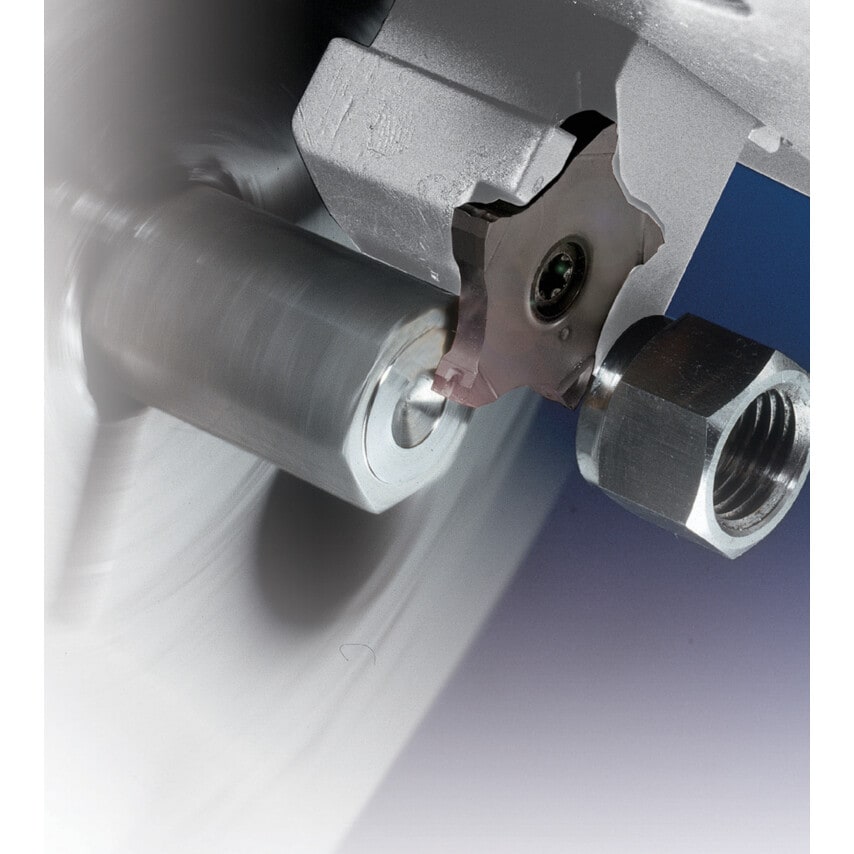

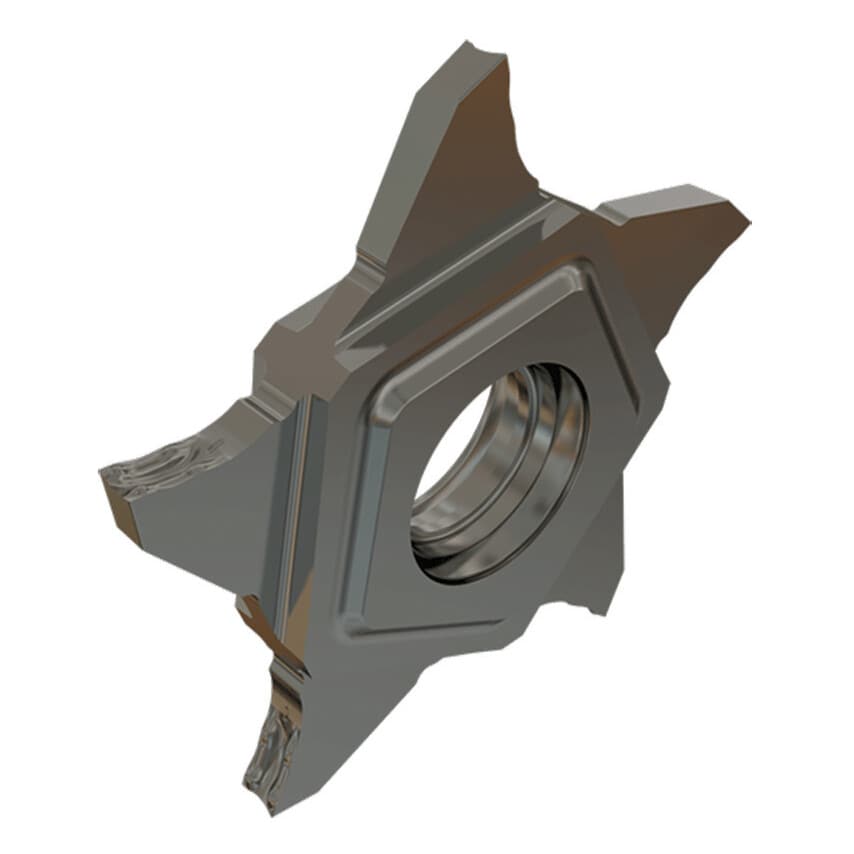

ISCAR has developed a new insert designated PENTACUT, with 5 cutting edges, for multifunction applications including grooving, parting, recessing and chamfering. This cost effective insert is designed to perform shallow grooving operations and parting of small solid bars up to 12.5 mm in diameter. Each cutting edge on the pentagonal shaped insert is equipped with a unique J-type positive chipformer that provides excellent chip control in grooving, parting and recessing (light side turning) applications.For all dimensional and technical specifications please refer to our catalogue.

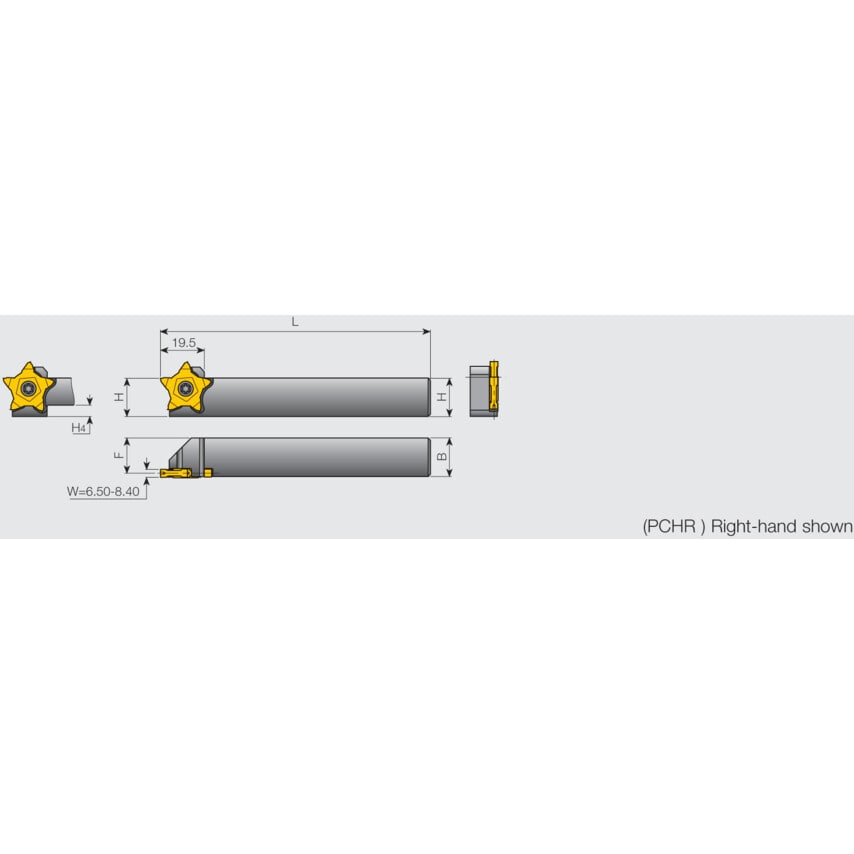

| Cutting Direction | Right Hand |
| Cutting Application | Grooving | Parting | Threading |
| Blade Type | Grooving | Parting | Threading |
| Coolant Delivery | External |
| Maximum Grooving Width | 3.2mm |
| Insert Style | PENTA |
| Compatible Shank Size | 20x20 |
| Minimum Grooving Width | 0.5mm |
| Blade Length | 120mm |
| Side to Cutting Tip | 18.5mm |
| Number of Pockets | 1 |
| Maximum Grooving Depth | 6.5mm |
| ISO Designation | PCHR 20-24 |
| MFR Part No. | 2301624 |
| Cutting Height | 20mm |
| Series | Pentacut |
| Blade Style | PENTACUT |
