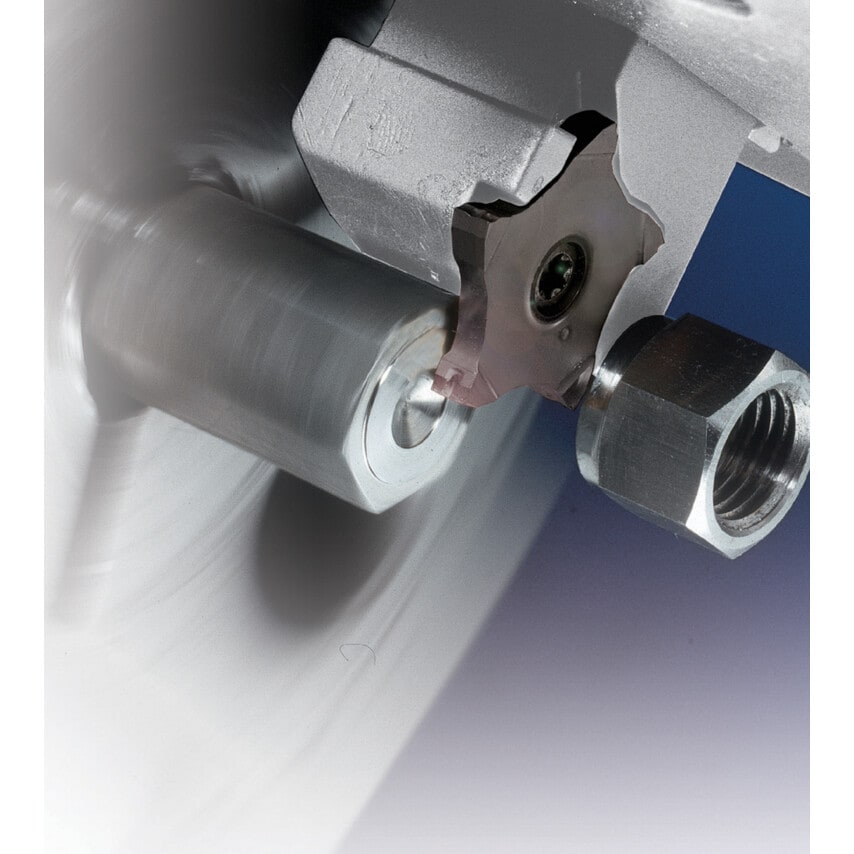

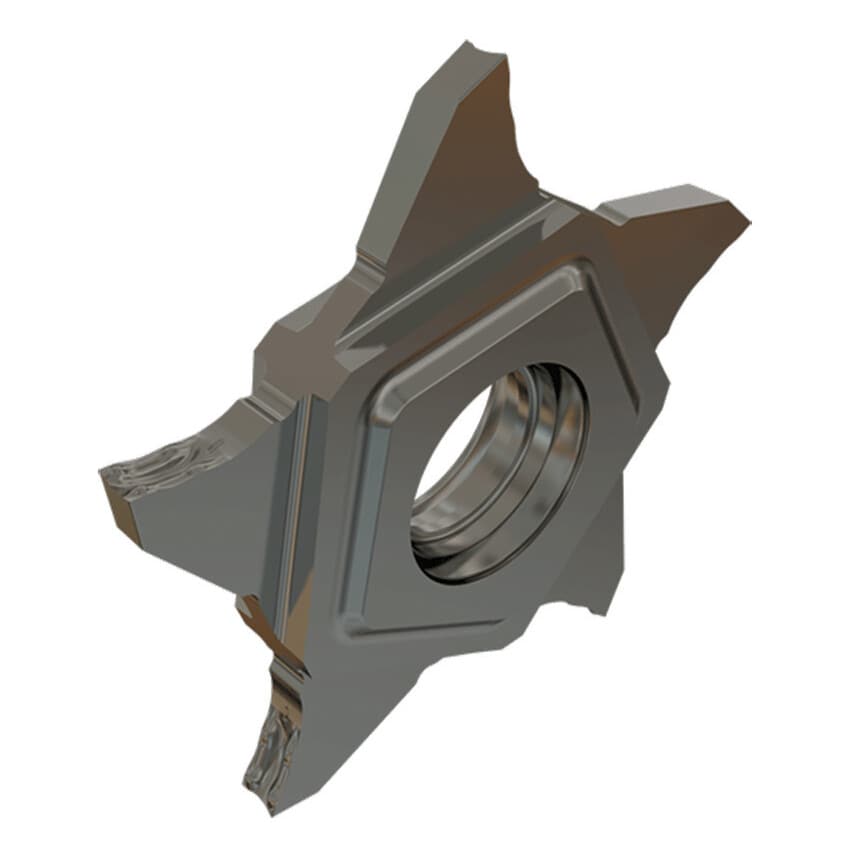

ISCAR has developed a new insert designated PENTACUT, with 5 cutting edges, for multifunction applications including grooving, parting, recessing and chamfering. This cost effective insert is designed to perform shallow grooving operations and parting of small solid bars up to 12.5 mm in diameter. Each cutting edge on the pentagonal shaped insert is equipped with a unique J-type positive chipformer that provides excellent chip control in grooving, parting and recessing (light side turning) applications.For all dimensional and technical specifications please refer to our catalogue.

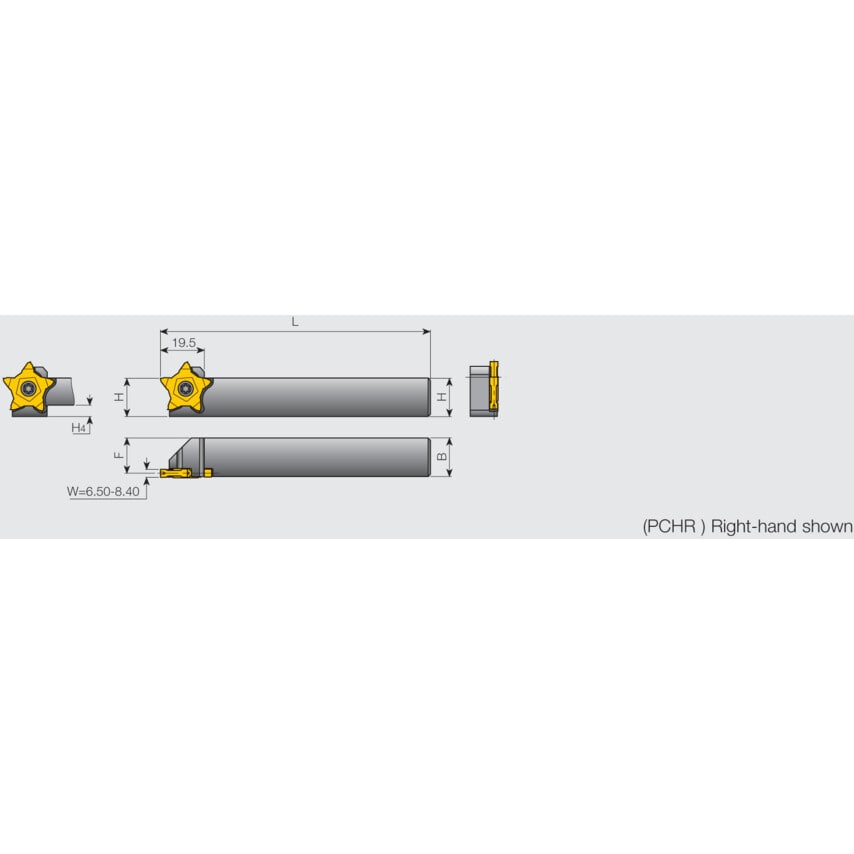

| Insert Style | PENTA |
| Coolant Delivery | External |
| Blade Style | PENTACUT |
| ISO Designation | PCHR 25-24 |
| Compatible Shank Size | 25x25 |
| MFR Part No. | 2301629 |
| Series | Pentacut |
| Minimum Grooving Width | 0.5mm |
| Cutting Direction | Right Hand |
| Side to Cutting Tip | 23.5mm |
| Blade Type | Grooving | Parting | Threading |
| Maximum Grooving Depth | 6.5mm |
| Cutting Application | Grooving | Parting | Threading |
| Maximum Grooving Width | 3.2mm |
| Cutting Height | 25mm |
| Blade Length | 135mm |
| Number of Pockets | 1 |
