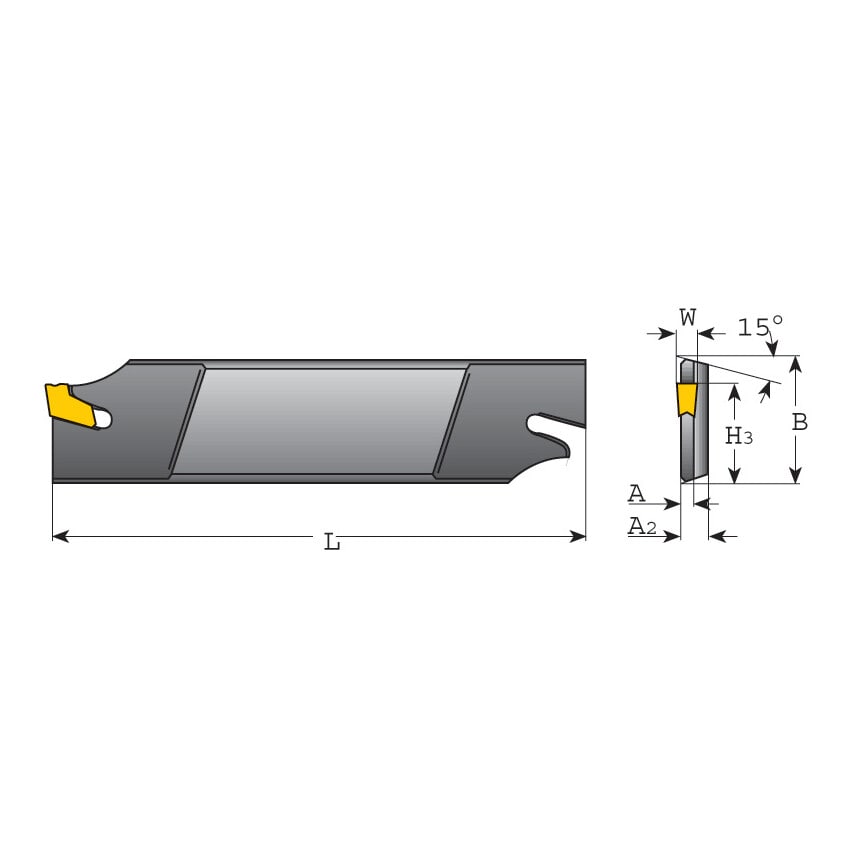

SGFHR/L Self-Grip Toolholder.For all dimensional specifications please refer to our catalogue.
| Blade Style | SELF-GRIP |
| Number of Pockets | 2 |
| Blade Height | 26mm |
| Coolant Delivery | External |
| Blade Length | 110mm |
| Product Type | Self-grip Toolholder |
| Compatible Modular Toolholder | SGTBU | TGTBU |
| Insert Holding Type | Self Grip |
| ISO Designation | SGFH-26-2 |
| Maximum Grooving Width | 2.69mm |
| Workpiece Diameter | 50 |
| Series | SelfGrip |
| Seat Size | 2 |
| Cutting Direction | Left Hand | Right Hand |
| Cutting Height | 21.4mm |
| Maximum Grooving Depth | 25mm |
| Cutting Application | Parting |
| Blade Type | Parting |
| Insert Style | GFN/R/L |
| Minimum Grooving Width | 1.8mm |
| MFR Part No. | 2300512 |
| Blade Width | 1.6mm |
