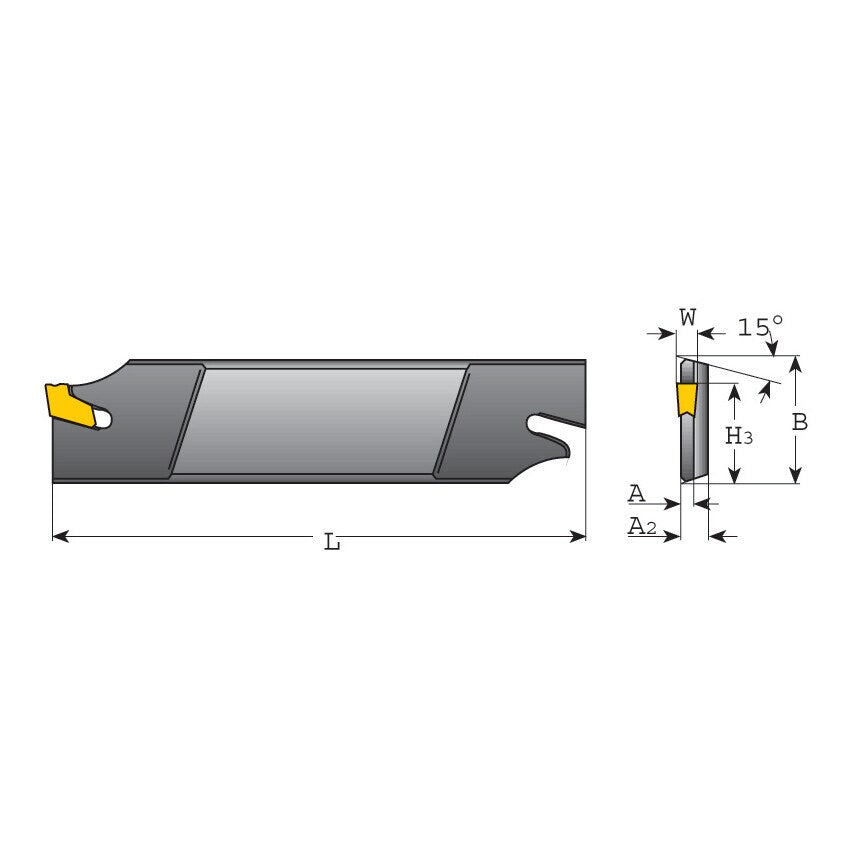

SGFHR/L Self-Grip Toolholder.For all dimensional specifications please refer to our catalogue.
| Coolant Delivery | External |
| Number of Pockets | 2 |
| Cutting Application | Parting |
| MFR Part No. | 2300510 |
| Minimum Grooving Width | 1.6mm |
| Workpiece Diameter | 35 |
| Blade Width | 1.2mm |
| ISO Designation | SGFH-26-1 |
| Blade Type | Parting |
| Compatible Modular Toolholder | SGTBU | TGTBU |
| Insert Style | GFN/R/L |
| Maximum Grooving Width | 1.6mm |
| Blade Height | 26mm |
| Blade Length | 110mm |
| Maximum Grooving Depth | 17.5mm |
| Seat Size | 1 |
| Series | SelfGrip |
| Cutting Height | 21.4mm |
| Cutting Direction | Left Hand | Right Hand |
| Blade Style | SELF-GRIP |
