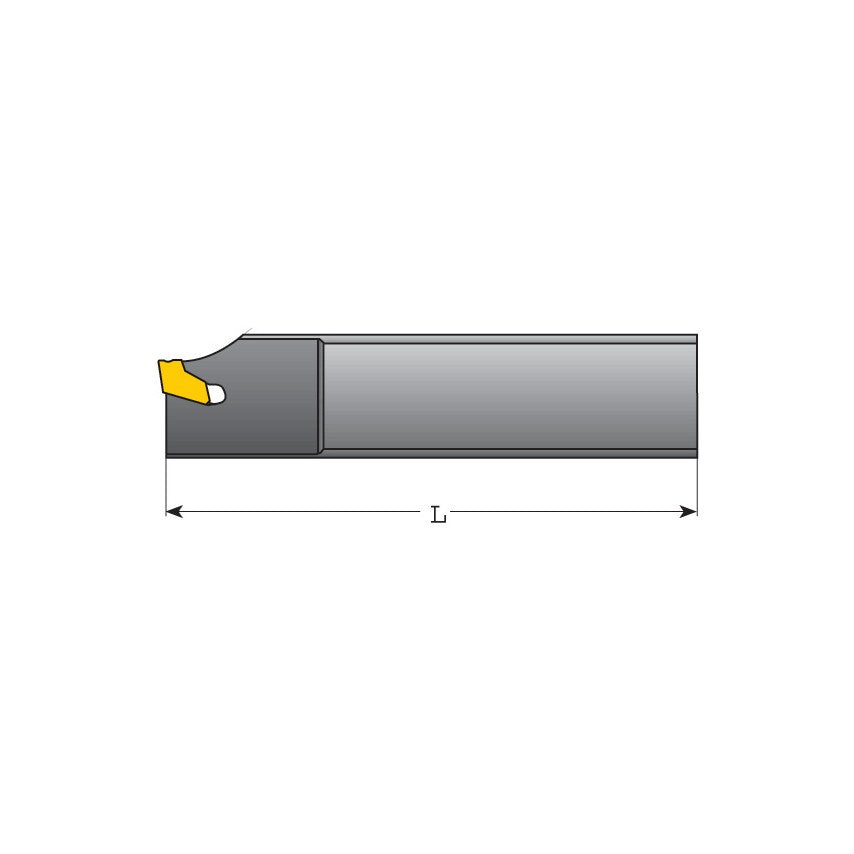

SGFHR/L Self-Grip Toolholder.For all dimensional specifications please refer to our catalogue.
| Blade Length | 150mm |
| Workpiece Diameter | 120 |
| Number of Pockets | 2 |
| Compatible Modular Toolholder | SGTBU | TGTBU |
| Maximum Grooving Width | 6.5mm |
| Blade Type | Parting |
| ISO Designation | SGFH-32-6 |
| Cutting Application | Parting |
| Minimum Grooving Width | 5.51mm |
| Maximum Grooving Depth | 60mm |
| Cutting Direction | Left Hand | Right Hand |
| MFR Part No. | 2300530 |
| Insert Style | GFN/R/L |
| Cutting Height | 24.8mm |
| Coolant Delivery | External |
| Blade Style | SELF-GRIP |
| Series | SelfGrip |
| Blade Width | 4mm |
| Blade Height | 32mm |
| Seat Size | 6 |
