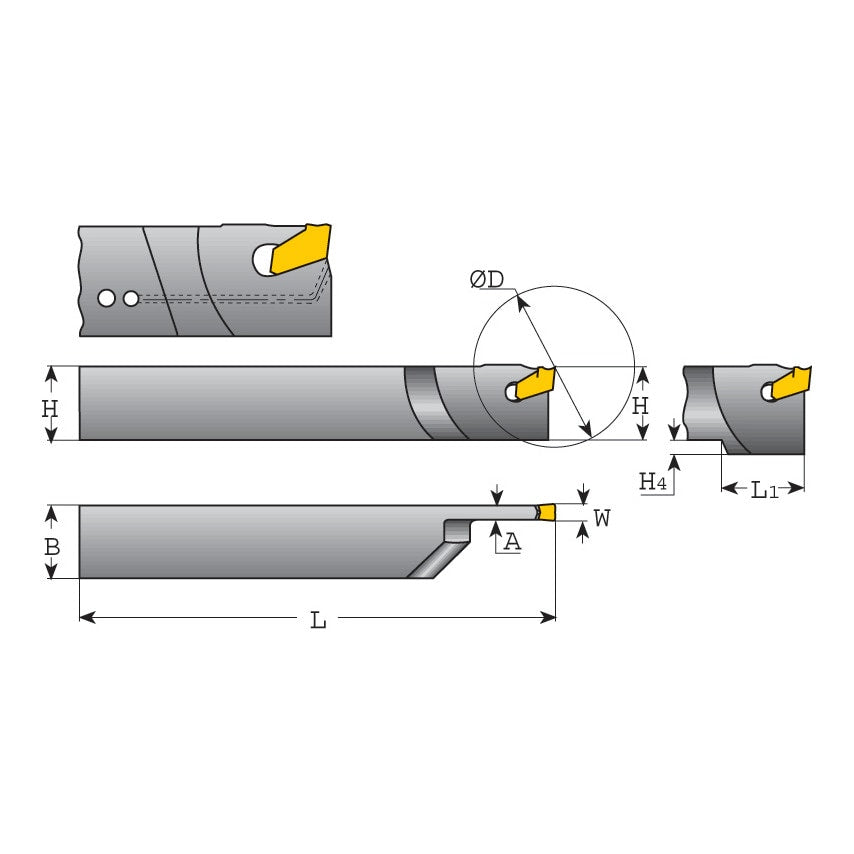

SGFHR/L Self-Grip Toolholder.For all dimensional specifications please refer to our catalogue.
| Insert Holding Type | Self Grip |
| Workpiece Diameter | 52 |
| ISO Designation | SGTFR-2020-3 |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Shank Height | 20mm |
| Minimum Grooving Width | 2.7mm |
| Insert Style | GFL | GFN | GFR |
| Maximum Grooving Width | 3.53mm |
| Maximum Grooving Depth | 26mm |
| Shank Width | 20mm |
| Overall Length | 120mm |
| Modular Toolholder | Integral Parting Holder |
| Toolholder Style | SGTFR |
| Seat Size | 2.4 |
| Series | SelfGrip |
| Cutting Height | 20mm |
| Cutting Application | Parting |
| MFR Part No. | 2300858 |
