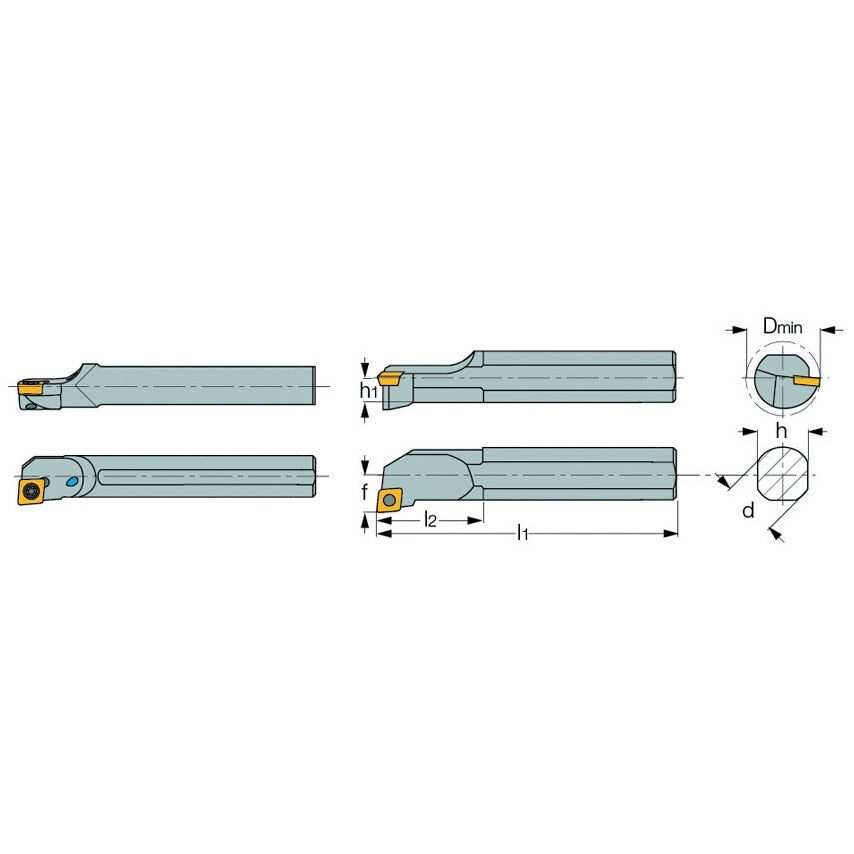

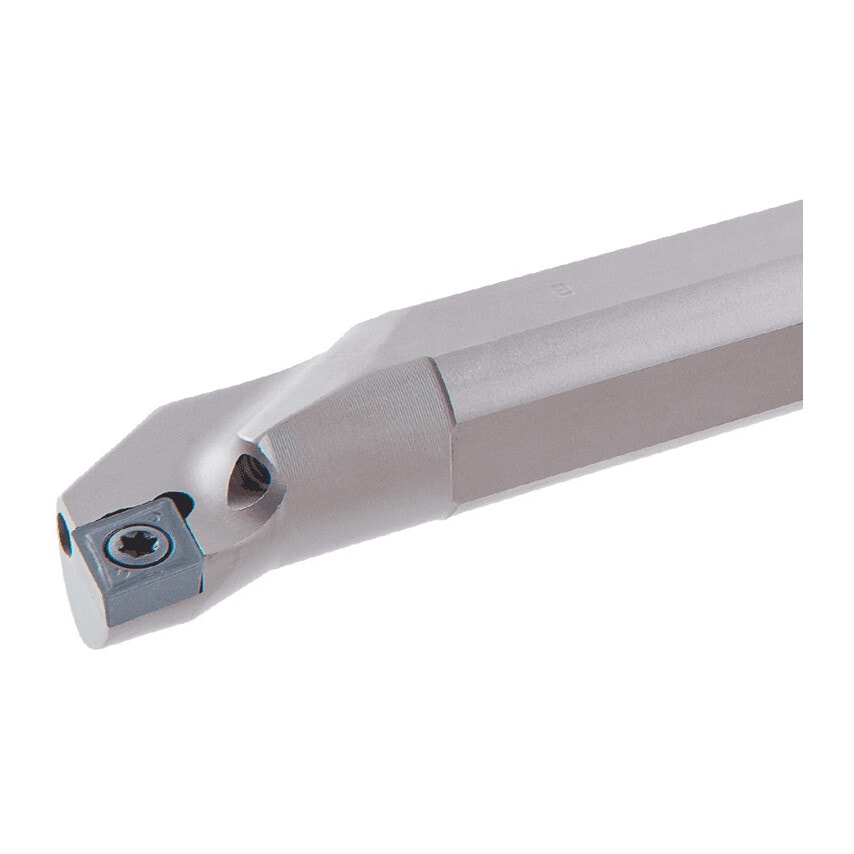

A/E/S-SCLCR/L: Screw lock boring bars for 5 mm minimum bore diameter, carrying 80 rhombic inserts with 7 clearance.
| Coolant Delivery | External |
| Insert Style | CCGT | CCMT |
| Overall Length | 125mm |
| Cutting Application | Boring |
| Head Length | 16mm |
| Cutting Height | 0mm |
| Minimum Bore Diameter | 10mm |
| Centre to Cutting Tip | 5mm |
| Insert Holding Type | Screw-On |
| Series | ISO TURN |
| Shank Diameter | 8mm |
| Cutting Direction | Right Hand |
| MFR Part No. | 3601906 |
| ISO Designation | E08K SCLCR-06 |
| Toolholder Style | SCLCR |
| Seat Size | 6 |
| Modular Toolholder | Integral Boring Bar |
