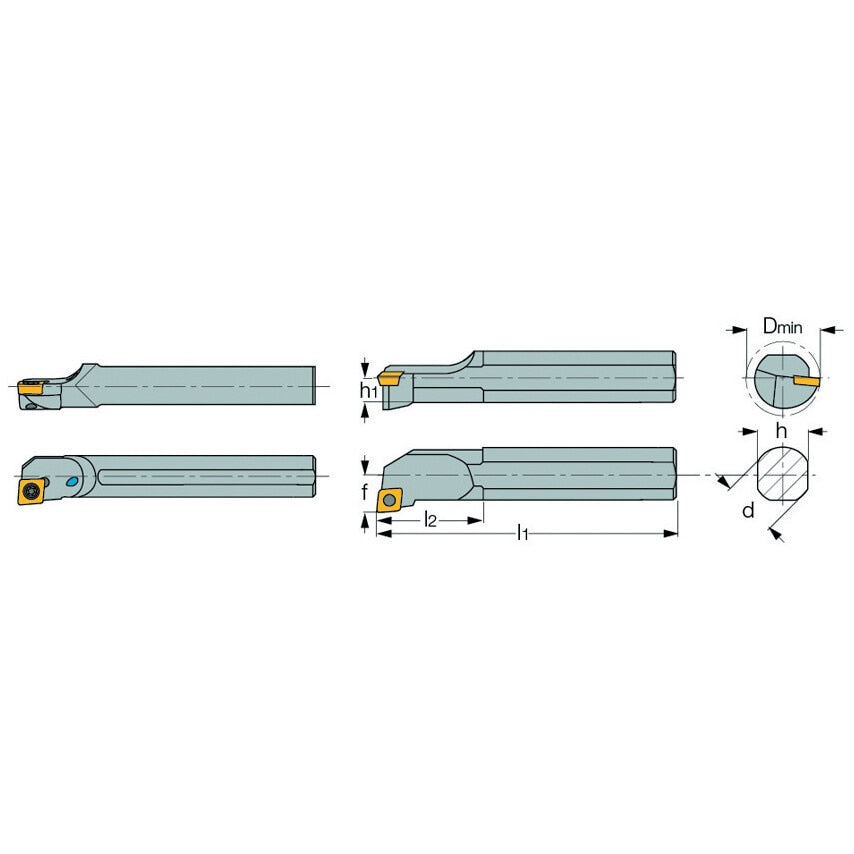

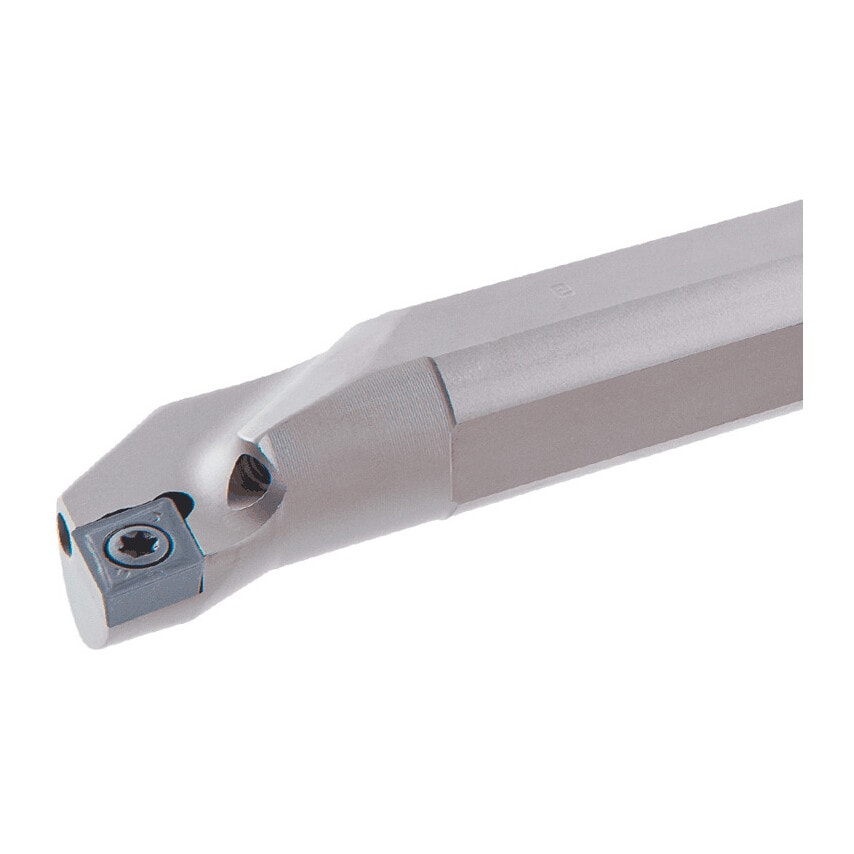

A/E/S-SCLCR/L: Screw lock boring bars for 5 mm minimum bore diameter, carrying 80 rhombic inserts with 7 clearance.
| Centre to Cutting Tip | 11.0mm |
| Series | ISO TURN |
| Coolant Delivery | External |
| Head Length | 45.0mm |
| Minimum Bore Diameter | 20.0mm |
| Modular Toolholder | Integral Boring Bar |
| Toolholder Style | SCLCR |
| ISO Designation | S16Q SCLCR-09 |
| Shank Diameter | 16.0mm |
| Cutting Application | Boring |
| Seat Size | 9 |
| Cutting Height | 0mm |
| Overall Length | 180mm |
| Insert Style | CCGT | CCMT |
| Insert Holding Type | Screw-On |
| Cutting Direction | Right Hand |
| MFR Part No. | 3601157 |
