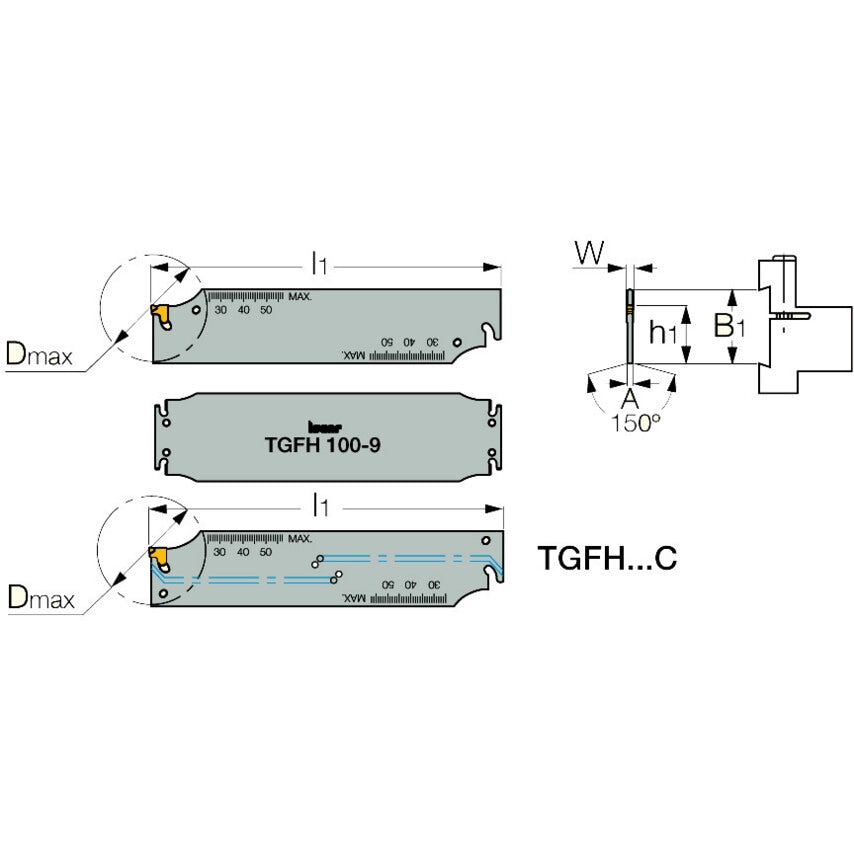

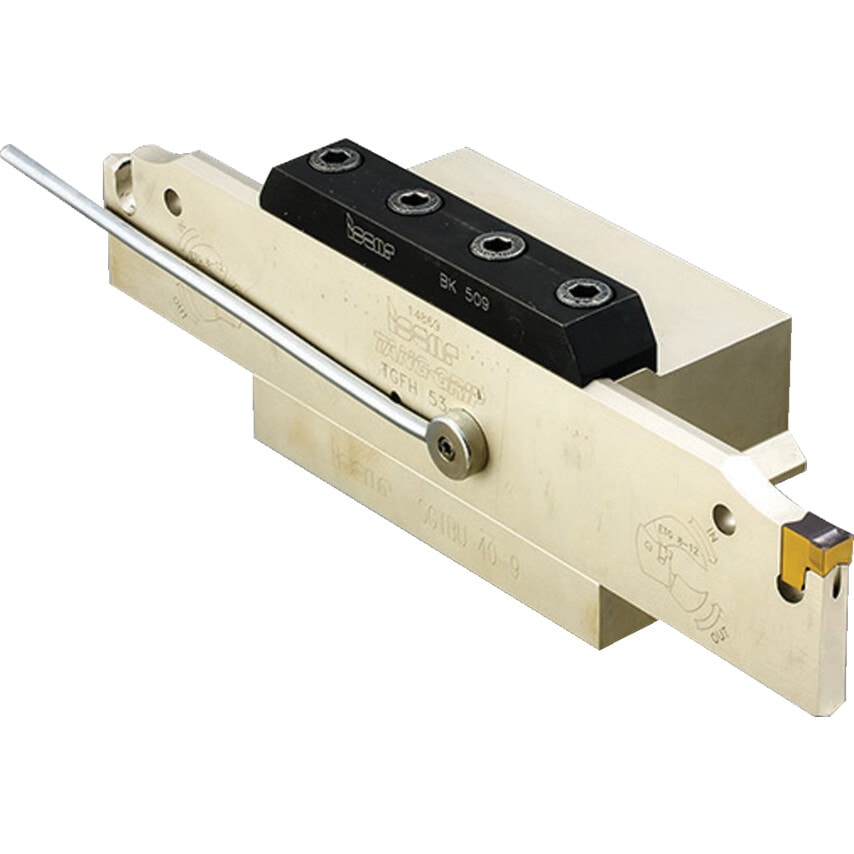

TGFH/R/L Blades with Tangentially Oriented Pocket for Parting and Grooving, for TANG-GRIP Single-Ended Inserts.
| Series | Tang-Grip |
| Maximum Grooving Depth | 40mm |
| Blade Height | 26.0mm |
| Number of Pockets | 2 |
| Maximum Grooving Width | 4.50mm |
| Cutting Application | Grooving | Parting |
| ISO Designation | TGFH 26-4 |
| Insert Style | TAG N/R/L |
| Workpiece Diameter | 80 |
| Blade Type | Blade |
| Cutting Height | 21.4mm |
| Blade Width | 3.40mm |
| MFR Part No. | 2301765 |
| Blade Length | 110mm |
| Minimum Grooving Width | 3.70mm |
| Seat Size | 4 |
