DGFH

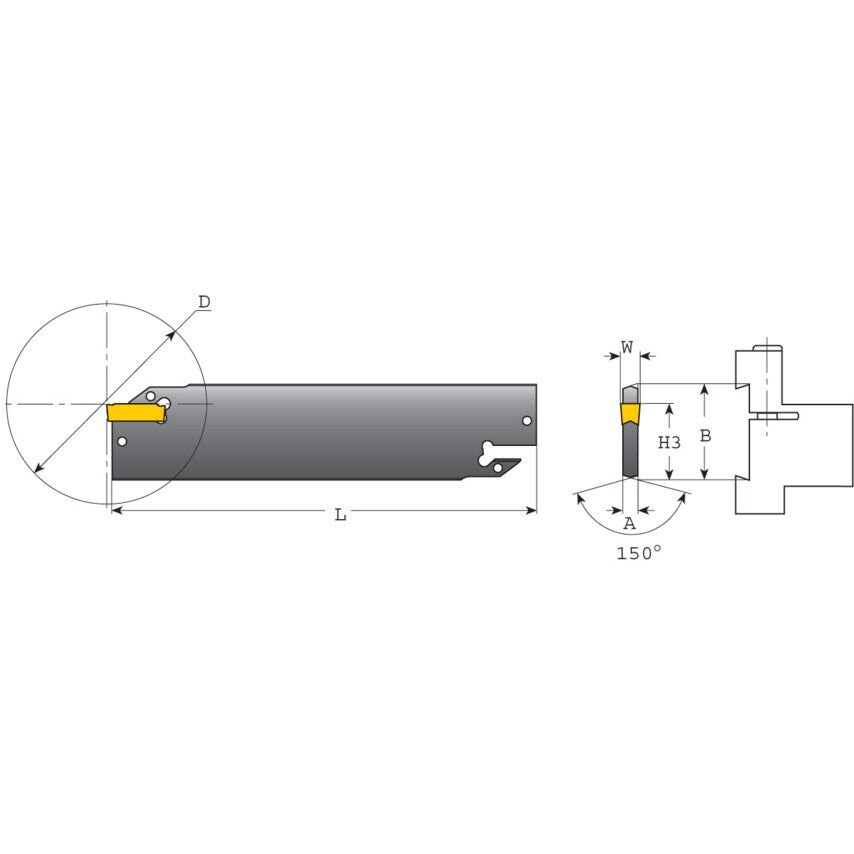

Double-ended parting and grooving blades
For use with DO-GRIP and HELI-GRIP DGN / DGNC double-ended inserts.
Double ended insert self clamped for deep grooving and large diameters. Screw clamped for small diameters. Extended, prismatic surfaces guarantee reliable, foolproof clamping even in unstable machining conditions.
| Maximum Grooving Width | 4.00mm |
| Cutting Application | Grooving | Parting |
| Seat Size | 4 |
| ISO Designation | DGFH 32-4 |
| MFR Part No. | 2301246 |
| Minimum Grooving Width | 4.00mm |
| Insert Style | DGN/R/L |
| Cutting Height | 24.8mm |
| Blade Height | 32.0mm |
| Blade Length | 150mm |
| Blade Type | Blade |
| Series | Do-Grip |
| Maximum Grooving Depth | 50mm |
| Number of Pockets | 2 |
| Workpiece Diameter | 100 |
| Blade Width | 3.20mm |
