TGSU 35-2 Tang Grip Blade

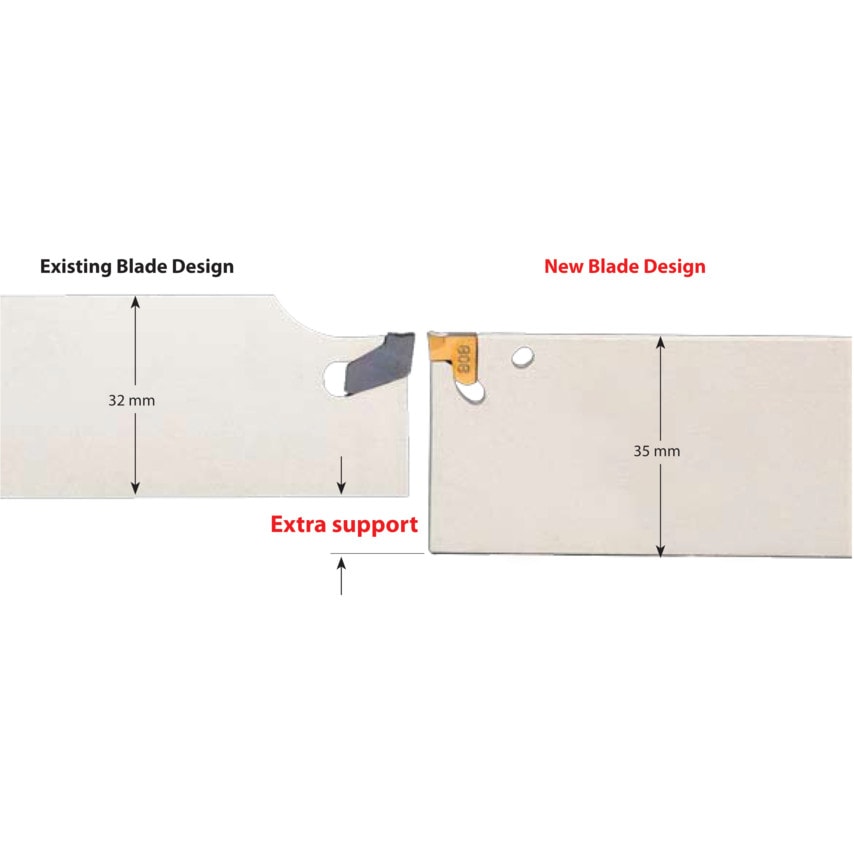

Iscar TGSU 35 TANG-GRIP Parting and Grooving Blades deliver the following benefits: There is no chip obstruction when applying variable machining conditions. The free chip flow provides excellent surface finish and increases the blade?s tool life. The new blade is now taller and the insert is better supported resulting in a more rigid design compared to the current blade. It features higher rigidity and is capable of bearing heavier insert loads (higher feed). As the new blade is taller and longer, it can be used for deeper parting and grooving applications. The new design reduces blade vibrations when using a long overhang and improves part straightness. Block Features The new block is similar to ISCAR?s existing SGTBu blocks aside from the centre height dimension. The new block can carry blades which are 2 to 7mm in width. Competitor?s blades cannot be used on this new block. For dimensional specification please refer to the PDF of the catalogue.

Maximum Grooving Width	2.40mm
Maximum Grooving Depth	29.75mm
Seat Size	2
Blade Height	35.0mm
MFR Part No.	2302190
Blade Length	160mm
Workpiece Diameter	59.5
Blade Width	2.50mm
Blade Type	Blade
Insert Style	TAG N/R/L
Minimum Grooving Width	1.80mm
Series	Tang-Grip
Cutting Height	33.2mm
Cutting Application	Grooving | Parting
Number of Pockets	2
ISO Designation	TGSU 35-2
