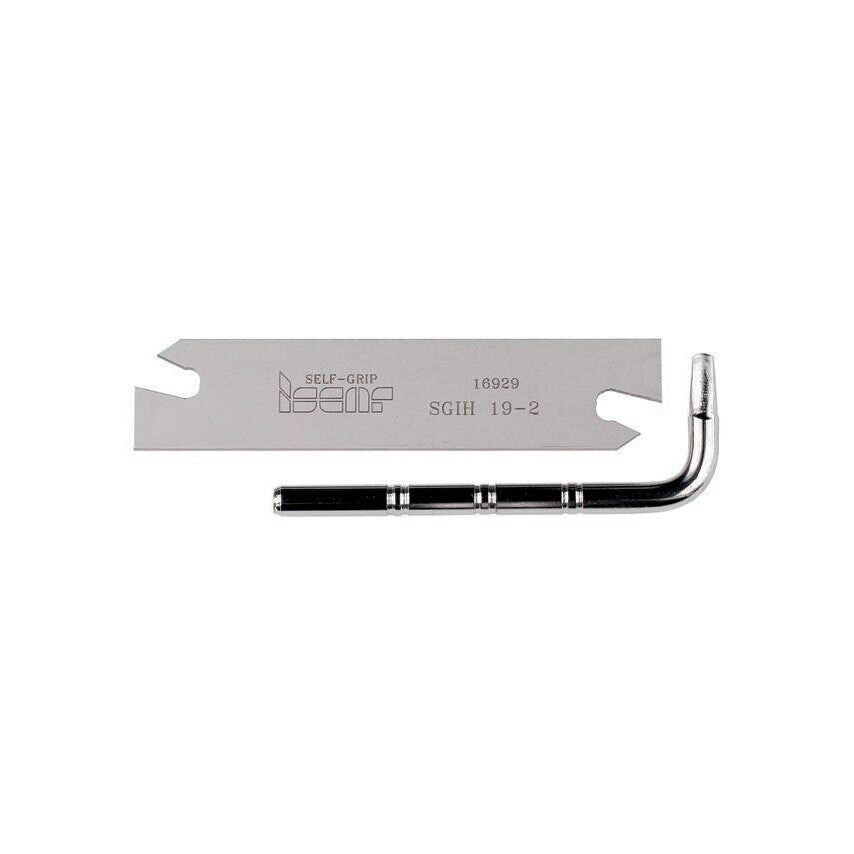

Self-Grip Parting & Grooving Blades
For all CNC lathes and manual lathes.
For grooves, parting off to center and chamfering.
Easy removal of inserts with extractor.
Multiple lead angles.
Chipbreaker on inserts allows for high speeds and feed rates.
Images are for illustration purposes only.
| Blade Type | Blade |
| Number of Pockets | 2 |
| Blade Length | 150mm |
| Maximum Grooving Depth | 50mm |
| Minimum Grooving Width | 2.70mm |
| Cutting Application | Grooving | Parting |
| ISO Designation | SGIH 32-3 |
| Series | SelfGrip |
| MFR Part No. | 2300619 |
| Blade Width | 2.40mm |
| Cutting Height | 24.8mm |
| Workpiece Diameter | 100 |
| Seat Size | 3 |
| Maximum Grooving Width | 3.53mm |
| Insert Style | GTN/R/L |
| Blade Height | 32.0mm |
