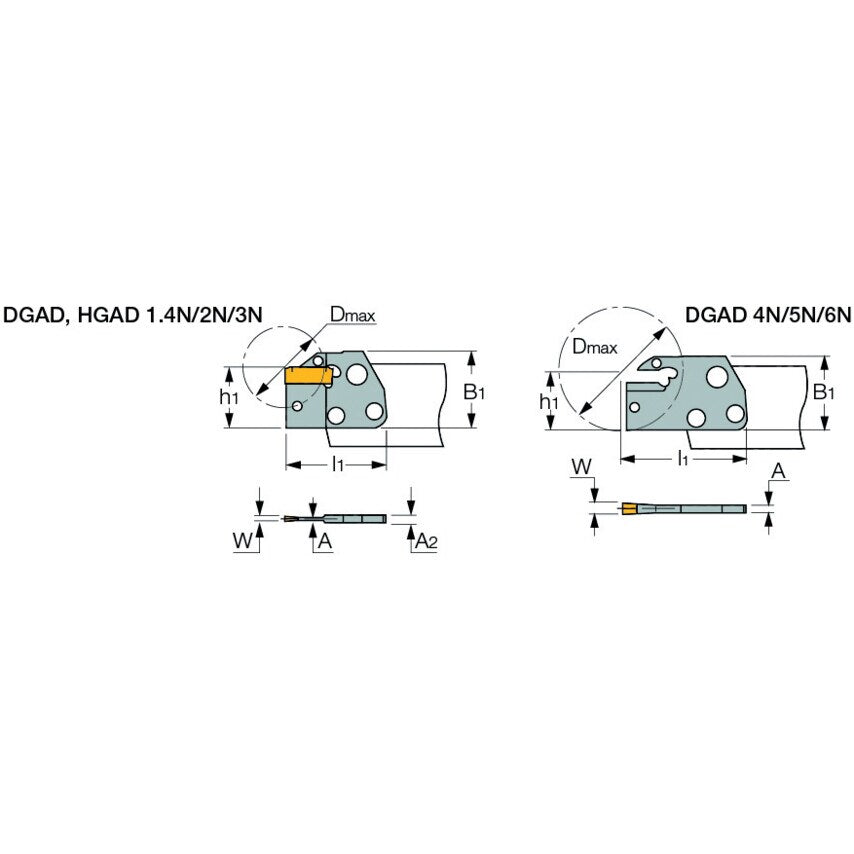

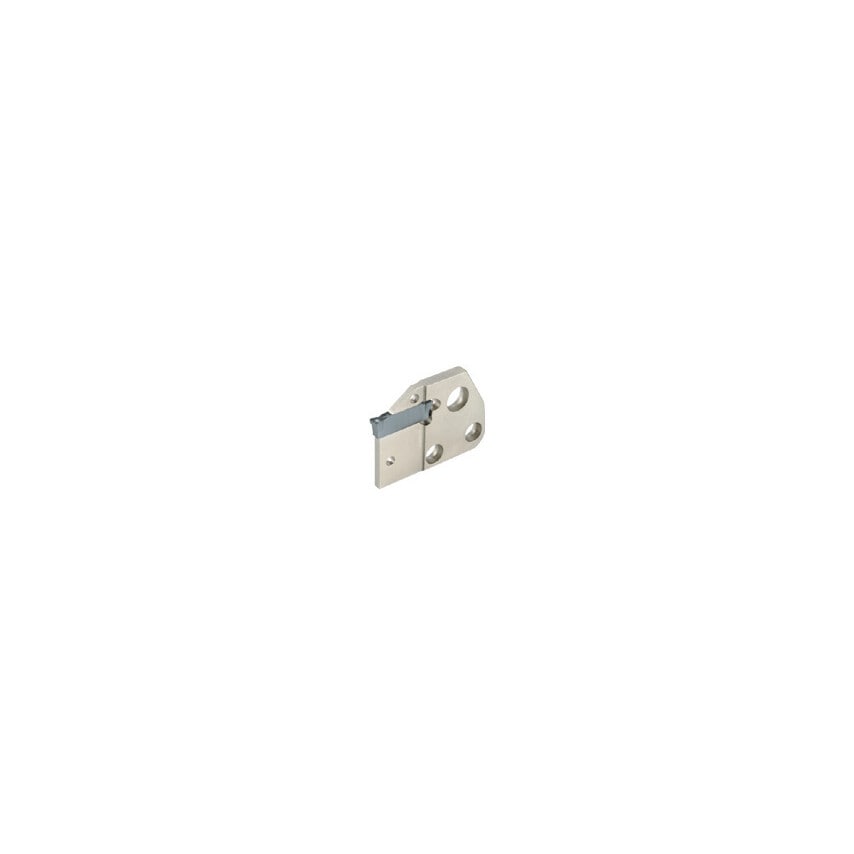

DGAD: Adapters for parting and grooving, for DO-GRIP double-ended inserts.
| Maximum Grooving Depth | 16mm |
| Body Width | 2.40mm |
| Blade Length | 41.5mm |
| Maximum Cutting Width | 3.18mm |
| Workpiece Diameter | 32 |
| Insert Style | DGN/R/L |
| Series | Do-Grip |
| Minimum Cutting Width | 3.0mm |
| Product Type | Adaptors |
| Minimum Grooving Width | 3.00mm |
| ISO Designation | DGAD 3N |
| Blade Width | 2.40mm |
| Blade Type | Adaptor |
| MFR Part No. | 2394956 |
| Cutting Height | 24mm |
| Number of Pockets | 1 |
| Diameter | 32mm |
| Maximum Grooving Width | 3.18mm |
| Cutting Application | Grooving | Parting |
| Blade Height | 24.0mm |
| Seat Size | 3 |
| Compatible Insert | DG..1.0 |
