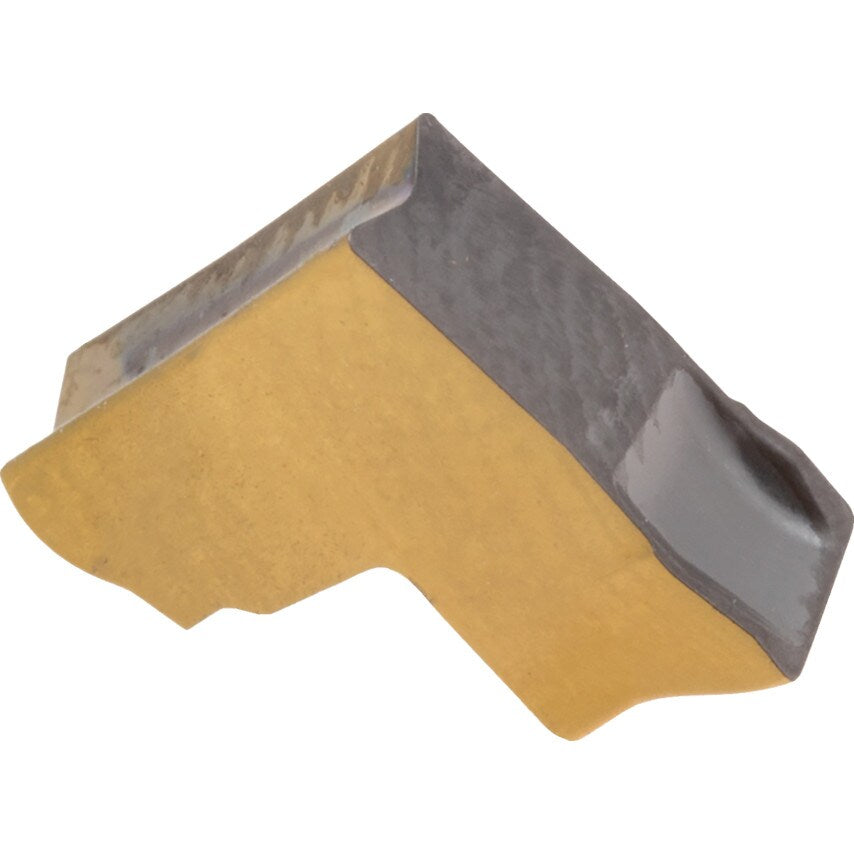

TAG R-C insert offer extra cutting edge strength thanks to their positive rake face with single cavity, negative land and shoulders. Ideal for use on bars, hard materials and tough parting applications.
Features and Benefits
Enables machining at medium to high feed rates with excellent straightness and surface finish
Recommended for parting large diameter parts and for interrupted cuts
Offers a free, unobstructed chip flow important in deep grooving and parting applications
improved tool and insert lifespan
Typical Applications
Parting
Grooving
| ISO Designation | TAG R3C-6D |
| Finish/Coating | Multilayer TiAlN/TiN |
| ISO Category Grade | M | P |
| Insert Holding Type | Self Grip |
| Grooving Width | 3mm |
| Material | Carbide |
| MFR Part No. | 6011399 |
| Chipbreaker | C |
| Cutting Direction | Right Hand |
| Series | Tang-Grip |
| Cutting Location | External |
| Manufacturer Grade | IC808 |
| Radius Type | Corner Radius |
| Corner Radius | 0.2mm |
| Cutting Application | Grooving | Parting |
| Compatible Materials | Cast Iron | High-Temperature Alloys | Stainless Steel | Steel | Titanium |
| Insert Style | TAG |
