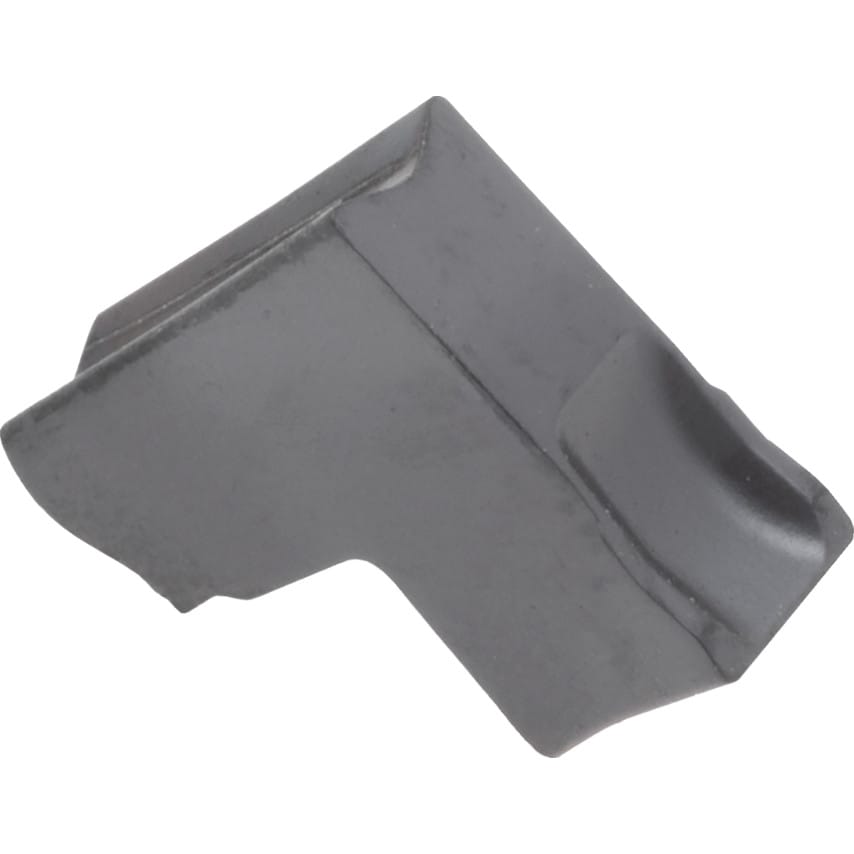

TAG N-C/W/M parting and grooving inserts are the first choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity (except 7 & 12 mm with double cavity), negative land and shoulders, provides extra cutting-edge strength. Suitable for use with medium-to-high feeds.
Features and Benefits
Hard substrate construction for improved rigidity and strength
Excellent chipping resistance properties
TiAlN PVD coating provides high wear and oxidation resistance
Specifications
Grade : IC908
ISO Range - P/M/K: (P15-P30)(M20-M30)(K20-K40)
ISO Range - H/S/N: (H10-H20)(S10-S25)
Grade or Coating Type: PVD
Coating Layers: TiAlN
Typical Applications
Milling
Steel
| Depth of Cut | 0.12in |
| ISO Category Grade | K | M | P |
| Compatible Materials | Steel |
| Manufacturer Grade | IC908 |
| MFR Part No. | 6003367 |
| Clearance Angle | 7\u00b0 |
| Series | TAG - Tang Grip |
| Finish/Coating | TiAlN |
| Chipbreaker | C |
| ISO Cut | K20-K40 | M20-M30 | P15-P30 |
| Cutting Direction | Neutral |
| Insert Style | TAG |
| Material | Carbide |
| ISO Designation | TAG N3C |
