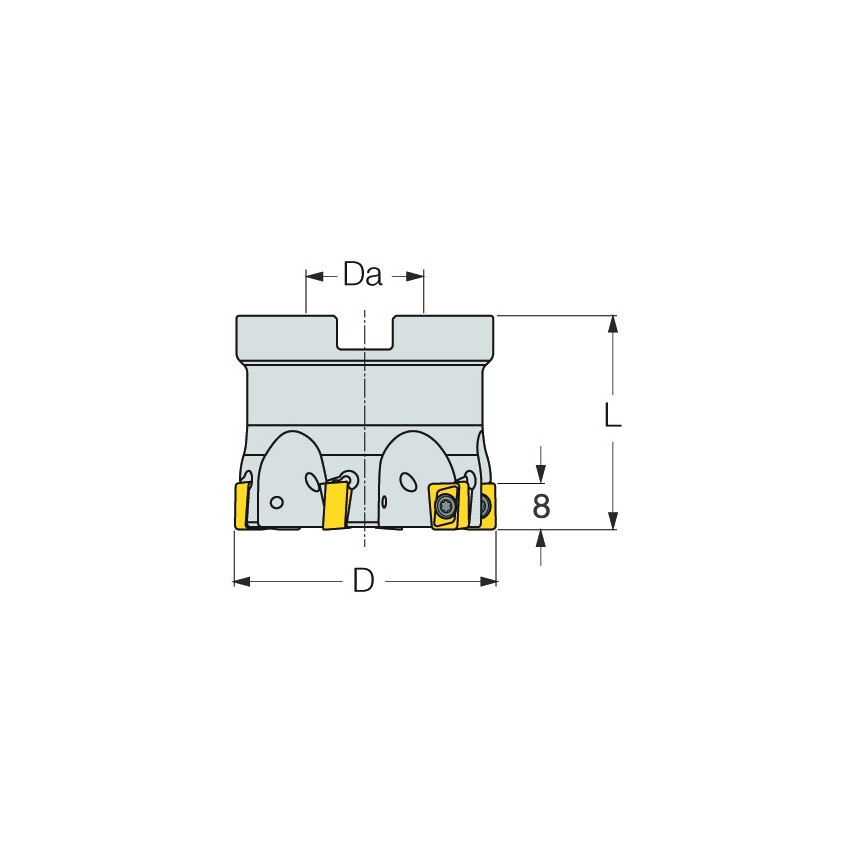

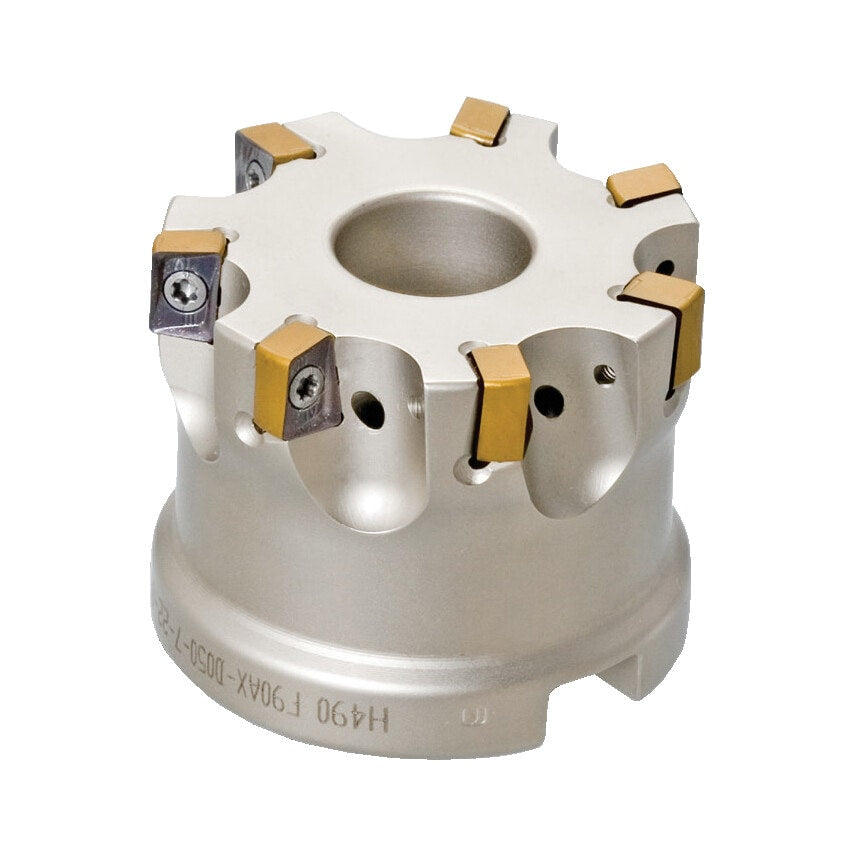

H490 F90AX D040-6-16-09 Helido Face Mill

H490 F90AX...-09 Face Mills Face Mills with double-sided inserts, diameter range 32-63mm. The new HELIDO H490 ANKX rectangular inserts have 4 helical right-hand positive cutting edges. They were designed in cutting edge lengths of 9, 12 and 17 mm. Insert construction is very thick and strong; clamped into a dovetail inclined pocket which provides a very rigid clamping and has a wiper which leaves an excellent surface finish. Due to its strong construction, unique chip deflector with positive cutting angles and excellent grade combinations, this new family features high durability, low cutting forces and long tool life. Our most advanced SUMO TEC grades ensure excellent performance and reliability. The new HELIDO tools can be used for machining steel, stainless steel and cast iron at very high machining parameters. HELIDO's state-of-the-art of milling insert design, enables excellent performance and extremely high productivity. H490 - A new family of double-sided inserts with 4 helical cutting edges.

Insert Size	904
Cutting Edge Angle	90\u00b0
Coolant Delivery	Coolant Through
Toolholder Style	Face Mill
ISO Designation	H490 F90AX D040-6-16-09
Maximum Cutting Diameter	40mm
Arbor Hole Diameter	16mm
Number of Inserts	6
Height	40mm
Insert Style	H490 ANKX
Insert Shape	Rectangle
Milling Application	Facing | Shouldering | Side Plunging | Slotting
MFR Part No.	3105274
Series	Helido 490
Depth of Cut	8mm
