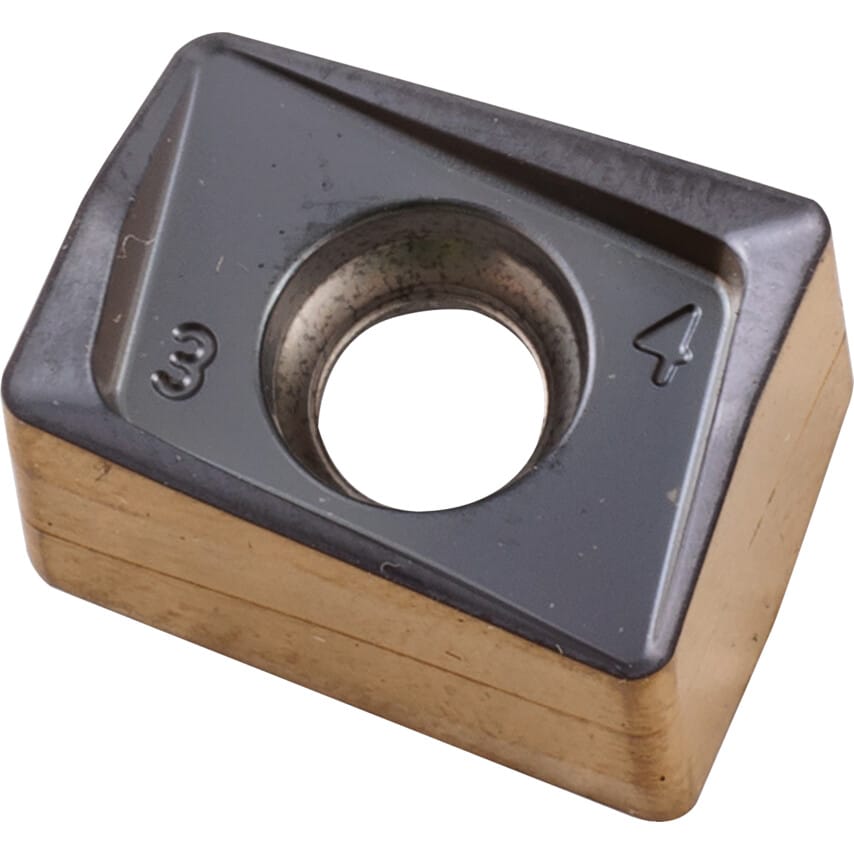

H490 ANKX 120508PNTR Insert Grade IC808

H490 ANKX Milling Inserts form Isacar feature a tough submicron substrate, improved TiAlN/AlTiN+TiN PVD coated grade for better chip flow. Designed for machining heat resistant alloys, austenitic stainless steel, hard alloys and carbon steel at medium to high cutting speeds, interrupted cut and unfavourable conditions. With excellent notch wear and built-up edge resistance it's double sided design and 4 cutting edges make it ideal for applications on a wide range of materials. Grade Description IC808 (P15-P30)(M20-M30)(K20-K40)(H10-H20)(S10-S25) A tough submicron substrate, improved TiAlN/AlTiN+TiN PVD coated grade for better chip flow. Designed for machining heat resistant alloys, austenitic stainless steel, hard alloys and carbon steel at medium to high cutting speeds, interrupted cut and unfavourable conditions. Excellent notch wear and built-up edge resistance. Grade Description IC830 An improved PVD TiAIN coated tough grade with better chip flow. Suitable for milling stainless, high temperature alloys and other alloy steels. Recommended for interrupted cut and heavy operations.

ISO Cut	H10 to H20 | K20 to K40 | M20 to M30 | P15 to P30 | S10 to S25
Finish/Coating	TiAlN/AlTiN+TiN
Insert Style	ANKX
Manufacturer Grade	IC808
Shape	85\u00b0 Parallelogram
Thickness	9.15mm
Pack Quantity	1
Insert Size	1205
Corner Radius	0.8
Cutting Direction	Neutral
Cutting Edge Length	13.67mm
ISO Designation	H490 ANKX 120508PNTR
Material	Carbide
Clearance Angle	0\u00b0
Material Application	Alloy Steel | Cast Iron | Cast Steel | Hardened Steel | High-Temperature Alloys | Stainless Steels | Titanium
ISO Category Grade	H | K | M | P | S
