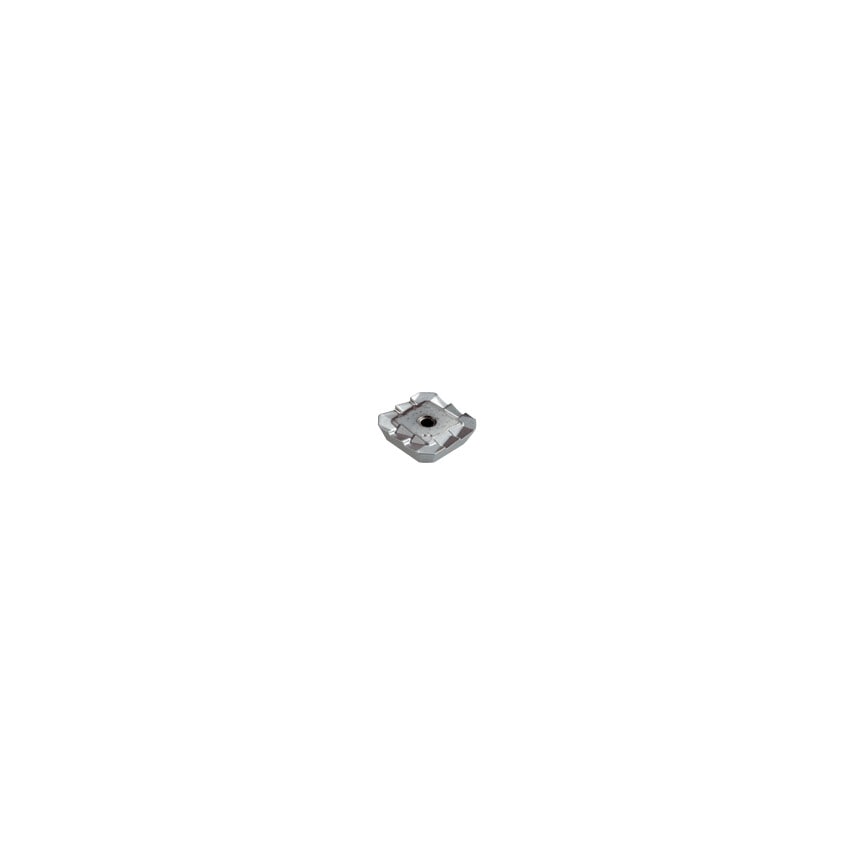

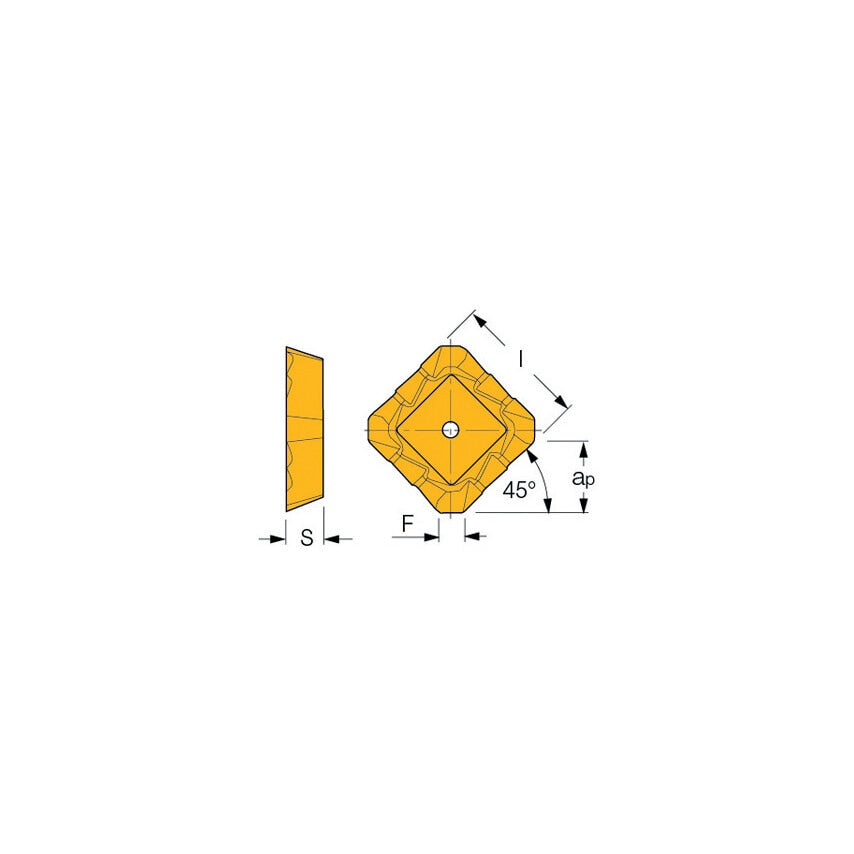

SEKR Milling Inserts
Square Insert
Insert Grade : IC328
A thin PVD coated TiCN layer on a P45-K40 substrate. Very high toughness. For milling, parting and grooving of steel, stainless and alloy steels at low to medium cutting speeds and for unstable machining conditions.
ISO Range - P/M/K: (P25-P40)(M30-M40)
ISO Range - H/S/N: (S20-S30)
Grade or Coating Type: PVD
Coating Layers: TiCN
| Cutting Edge Length | 12.70mm |
| Material | Carbide |
| Finish/Coating | TiCN |
| Pack Quantity | 1 |
| Shape | Square |
| ISO Designation | SEKR 1203AFTR-HS |
| Manufacturer Grade | IC328 |
| Thickness | 3.18mm |
| Material Application | High-Temperature Alloys | Stainless Steels | Steels |
| ISO Category Grade | M | P | S |
| ISO Cut | M30 to M40 | P25 to P40 | S20 to S30 |
| Chipbreaker | HS |
| Insert Style | SEKR |
| Clearance Angle | 20\u00b0 |
| Inscribed Circle | 12.70mm |
| Insert Size | 1203 |
