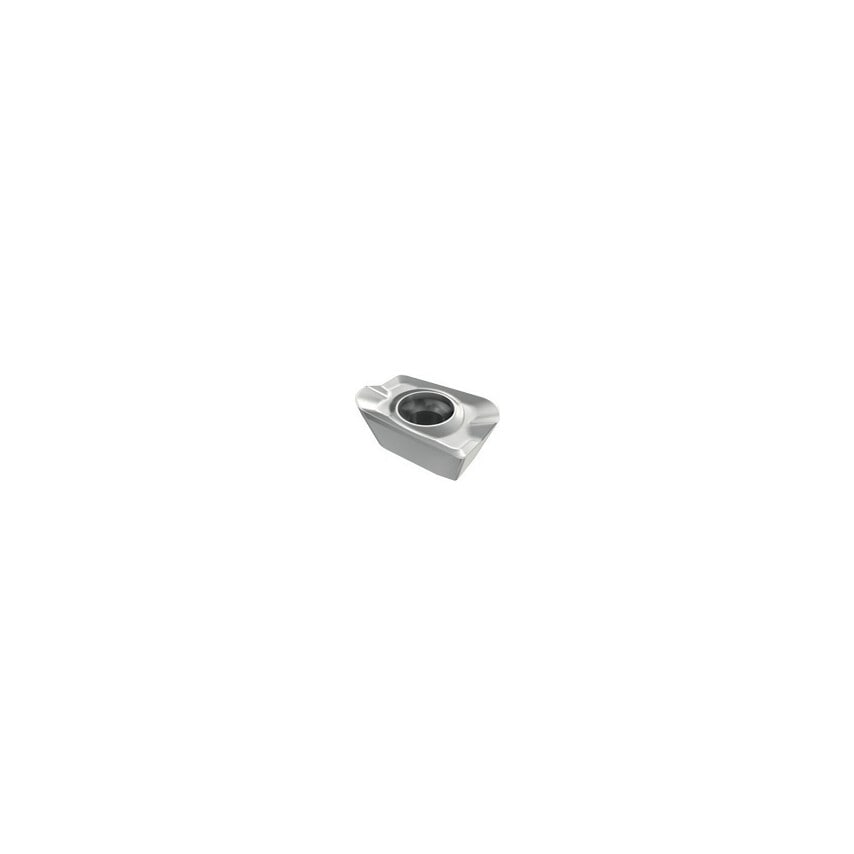

ADKT milling inserts features a tough substrate ideal for applications involving steel and stainless steel at low to medium cutting speeds and unstable machining conditions. The thin PVD TiCN coating helps provide excellent wear resistance and protection from heat build up, prolonging the tools lifespan.
Features and Benefits
Hard substrate for improved rigidity when machining
PVD TiCN coating for improved heat and wear resistance
Ideal for parting and grooving applications involving steel and stainless steel
Specifications
85 Parallelogram Insert
Insert Grade IC328
ISO Range - P/M/K: (P25-P40)(M30-M40)
ISO Range -H/S/N/: (S20-S30)
Grade or Coating Type: PVD
Coating Layers: TiCN
Typical Applications
Milling
Parting and Grooving
| Corner Radius | 5mm |
| Clearance Angle | 15\u00b0 |
| Finish/Coating | TiCN |
| ISO Designation | ADKT 150550R-HM |
| Thickness | 5.3mm |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Pack Quantity | 1 |
| Manufacturer Grade | IC328 |
| Chipbreaker | HM |
| Insert Style | ADKT |
| ISO Cut | M30 to M40 | P25 to P40 | S20 to S30 |
| Cutting Edge Length | 15.1mm |
| Shape | 85\u00b0 Parallelogram |
| Material Application | Alloy Steel | Stainless Steels | Steels |
| ISO Category Grade | M | P | S |
| Insert Size | 1505 |
