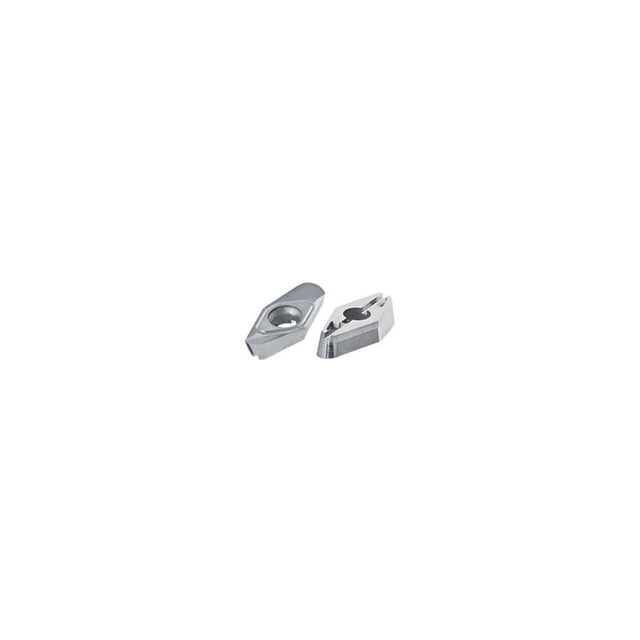

HSM90S APCR Milling Inserts
HELIALU super positive and polished rake inserts, for machining aluminum at high rotation speed. The insert features a groove on its bottom, designed to improve resistance to centrifugal force.
Insert Grade: IC28
ISO Range - P/M/K: (M30-M40)
ISO Range - H/S/N: (N15-N30)
Grade or Coating Type: UN-COATED
Coating Layers: Uncoated
Used mainly for machning aluminum at medium cutting speeds and medium or large chip sections. The inserts usually feature very sharp cutting angles.
| Insert Size | 1405 |
| Insert Style | APCR |
| Cutting Edge Length | 25mm |
| Manufacturer Grade | IC28 |
| Material | Carbide |
| Clearance Angle | 11\u00b0 |
| Shape | 85\u00b0 Parallelogram |
| ISO Cut | M30 to M40 | N15 to N30 |
| Thickness | 6.05mm |
| Corner Radius | 0.8mm |
| ISO Category Grade | M | N |
| Material Application | Nonferrous Metals | Stainless Steels |
| Pack Quantity | 1 |
| ISO Designation | HSM90S APCR 140508R P |
| Finish/Coating | Uncoated |
