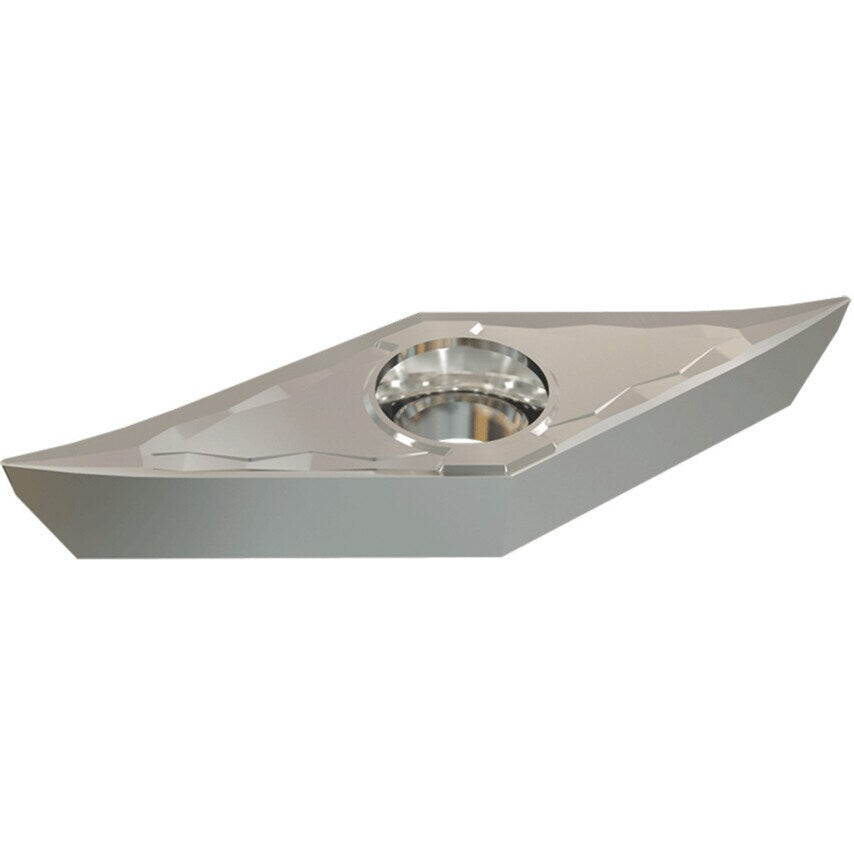

VCGT AS Turning Inserts are a 35 Rhombic Insert with a 7 positive flank, very positive rake angle and sharp cutting edge for machining aluminum.
Features and Benefits
Sharp cutting edge for optimum cutting performance
Carbide construction for strength and rigidity
Heat and wear resistant properties for prolonged tool life
Typical Applications
Turning
Stainless steel
Cast iron
Hardened steel
High-temperature alloy steel
Nonferrous metal
Standards
Insert Grade IC20
ISO Range - (M10-M25)(K10-K20)(H05-H15)(S05-S20)(N05-N25)
An uncoated grade for semifinishing, finishing and semiroughing of aluminum, cast iron and stainless steel.
| Clearance Angle | 7\u00b0 |
| Manufacturer Grade | IC20 |
| Pack Quantity | 1 |
| ISO Category | H | K | M | N | S |
| Material | Carbide |
| ISO Cut | H05 to H15 | K10 to K20 | M10 to M25 | N05 to N25 | S05 to S20 |
| Cutting Edge Length | 16.6mm |
| Thickness | 4.76mm |
| Chipbreaker | AS |
| Shape | 35\u00b0 Rhombic |
| Finish/Coating | Uncoated |
| ISO Designation | VCGT 160408-AS |
| MFR Part No. | 5540008 |
| ISO Category Grade | H | K | M | N | S |
| Insert Size | 160408 |
| Corner Radius | 0.8 |
| Insert Style | VCGT |
| Material Application | Cast Iron | Hardened Steel | High-Temperature Alloys | Nonferrous Metals | Nonferrous Metals |
| Inscribed Circle | 9.52mm |
